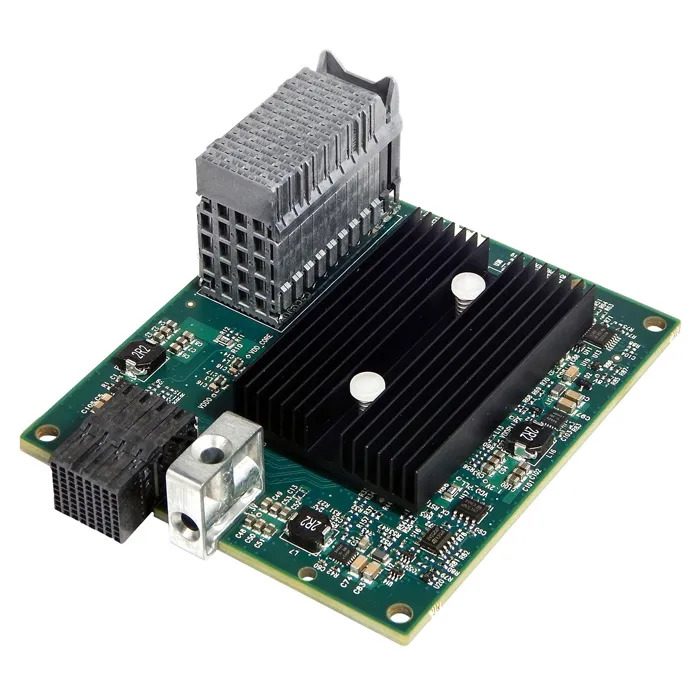

00D8532 - IBM Flex System IB6132 Dual-Port FDR Infiniband Adapter

Technical Specifications:
1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 56 Gbps
3. Number of Ports: 2
4. Connectivity Technology: Wired
5. Data Link Protocol: InfiniBand FDR
6. Features: InfiniBand FDR Link support, Quality of Service (QoS) support, Virtual Protocol Interconnect (VPI)
7. Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3az
8. Processor: Mellanox ConnectX-3
9. Dimensions (WxDxH): 6.6 cm x 16.8 cm x 1.8 cm
10. Weight: 90 g
11. OS Required: SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESX
12. Designed For: Flex System x240 Compute Node, x280 X6 Compute Node, x480 X6 Compute Node

Helpful Notes:
1. The IBM Flex System IB6132 adapter provides high-performance connectivity for InfiniBand FDR networks.
2. The adapter supports virtualization protocols, which allows multiple virtual machines to share a single adapter.
3. The Mellanox ConnectX-3 processor provides low latency and high bandwidth for demanding applications.
