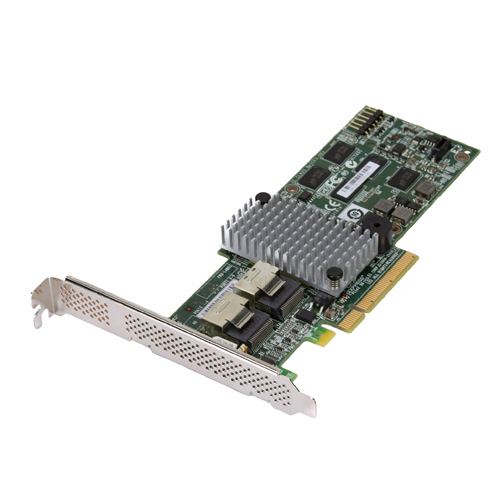

05-26105-00 - LSI Logic 12GB/s PCI Expressxp 3.0 4-Port Internal SAS/SATA RAID Controller

1. Interface: PCI Express 3.0 x8
2. Data Transfer Rate: 12 Gb/s
3. Number of Ports: 4 Internal Ports
4. RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
5. Supported Devices: SAS/SATA
6. Cache Memory: 1GB DDR3 SDRAM
7. Form Factor: Low Profile
8. Operating Temperature: 0°C to 55°C
9. Storage Temperature: -45°C to 105°C
10. Operating Humidity: 5% to 90% non-condensing
11. Storage Humidity: 5% to 95% non-condensing
12. OS Support: Windows, Linux, VMware

Notes:
1. The controller supports advanced RAID features, including hot spare and drive encryption.
2. The low profile form factor makes it suitable for use in space-constrained systems.
3. The 1GB cache memory ensures high-speed data transfer and improved performance.
