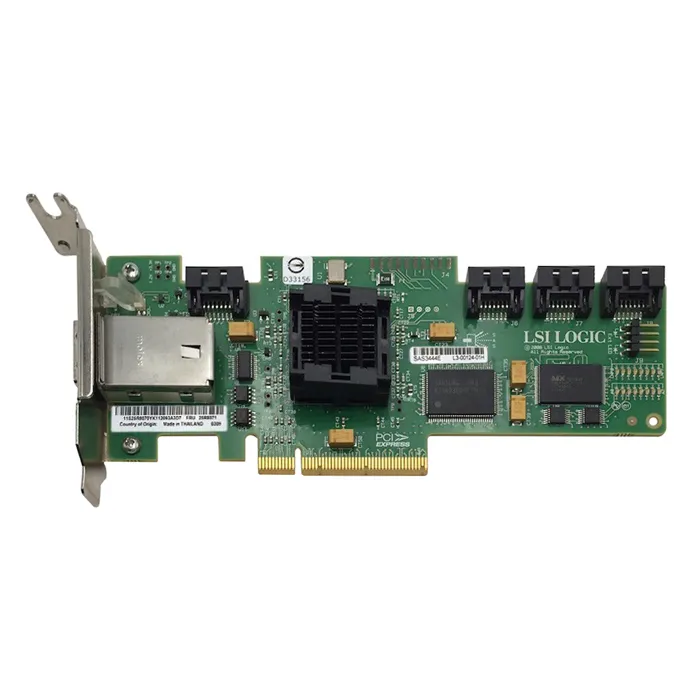

IBM 25R8071 | 3GB Single -Port PCI Express SAS RAID Host Bus Adapter

Here are the technical specifications for the IBM 3GB Single-Port PCI Express SAS RAID Host Bus Adapter:

1. Interface Type: PCI Express x8
2. Controller Interface Type: Serial Attached SCSI
3. Data Transfer Rate: 3 Gbps
4. RAID Levels: 0, 1, 1E, 10
5. Supported Devices: Hard drive, disk array (RAID)
6. Max Storage Devices Qty: 122
7. Processor: LSI LSISAS1068E
8. RAM: 256 MB DDR2 SDRAM
9. Supported OS: Windows, Linux, VMware
10. Dimensions: 6.6 x 2.5 in
11. Weight: 0.5 lbs
12. Power Consumption: 8 watts

Helpful Notes:
1. This adapter is compatible with IBM System x servers and select IBM BladeCenter platforms.
2. It supports hot-swap functionality for easy replacement of failed drives.
3. The adapter includes a battery backup unit (BBU) for protection against data loss in case of power failure.
