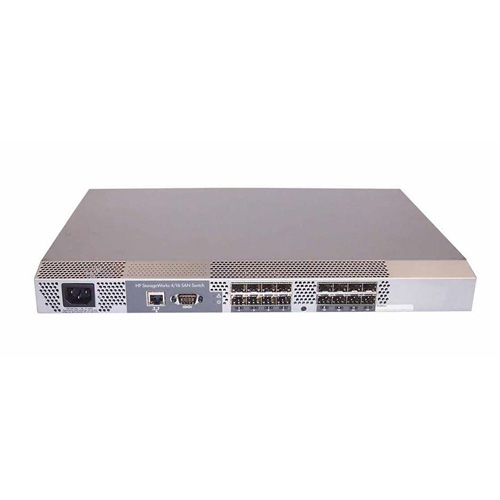

Brocade 80-1200203-03 | SAN Fibre Full-Fabric 16-Port Switch

Here are 12 technical specifications for the Brocade SAN Fibre Full-Fabric 16-Port Switch:

1. Port Speed: 2/4/8 Gbps
2. Number of Ports: 16
3. Switching Fabric: 256 Gbps
4. Form Factor: 1U Rack-mountable
5. Supported Protocols: FC-AL, FC-FLA, FC-FS, FC-GS-2, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW-2, FC-SW-3, FC-Tape, FCP, FCP-2, FCP-3, G_Port, IPFC
6. Management: CLI, HTTP, SNMP, Telnet
7. Power Consumption: 109W (maximum)
8. Power Supply: AC 120/230 V (50/60 Hz)
9. Operating Temperature: 0°C to 40°C
10. Storage Temperature: -25°C to 70°C
11. Humidity Range Operating: 10% to 85% (non-condensing)
12. Dimensions (WxDxH): 16.9 in x 12.1 in x 1.7 in

Helpful Notes:
1. The Brocade SAN Fibre Full-Fabric 16-Port Switch is a high-performance, reliable, and scalable solution for enterprise-level storage networks.
2. The switch supports a wide range of protocols, making it compatible with a variety of storage devices.
3. The switch's web-based management interface makes it easy to configure and monitor the network.
