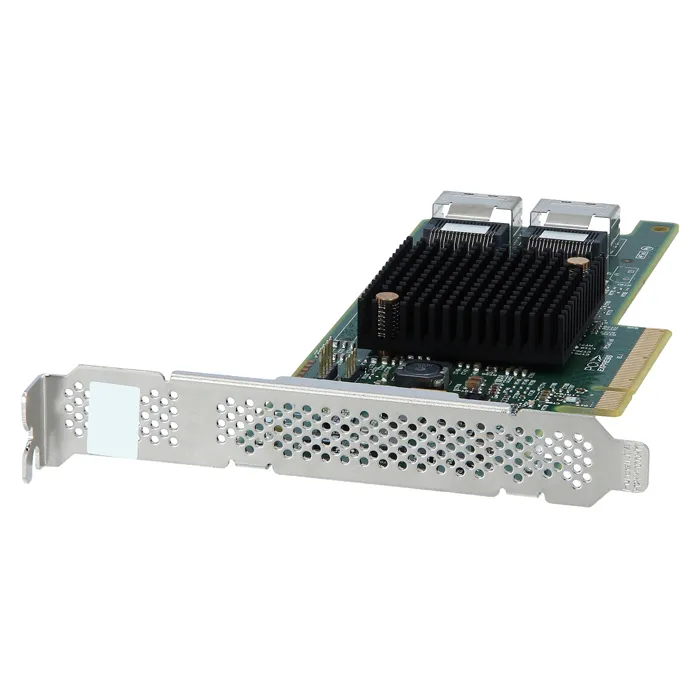

9400-8I - LSI 9400-8i 8-Port 12Gb/s SAS PCI-Express Tri-Mode Storage Adapter

Key Features :
Host Bus Type X8 Lane Pci Express® 3.1
Devices Supported Sas/sata: 1024, Nvme: 24
Internal Connectors 2 Hd Mini-sas Sff8643 (horizontal Mount)
Internal Ports 8
Operating Temperature 10° To 55° C
Operating Voltage +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux, Vmware.
Pci Power Typical: 10.05w
Cable Support Passive Copper
I/o Controller Sas3408
Mtbf > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-condensing
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant
Physical Dimensions Low Profile 6.127” X 2.712”
