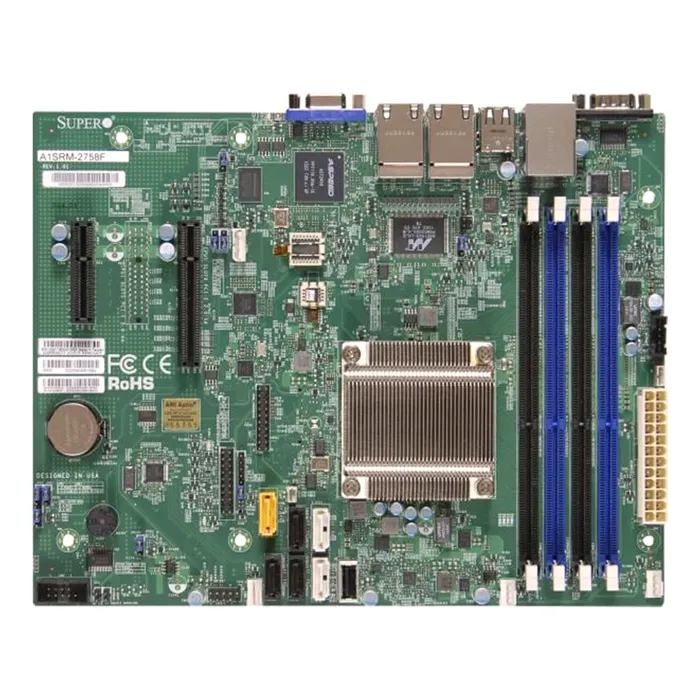

A1SRM-2758F - Supermicro Intel Atom C2758 Chipset System Board (Motherboard) Socket BGA-1283

Here are the technical specifications for the Supermicro Intel Atom C2758 Chipset System Board:

1. Processor Socket: BGA-1283
2. Processor: Intel Atom C2758
3. Number of Cores: 8
4. Chipset Type: System-on-Chip (SoC)
5. Max Memory Size: 64 GB
6. Memory Type: DDR3 ECC UDIMM or RDIMM
7. Memory Speed: 1600 MHz
8. Number of Memory Slots: 4
9. SATA Ports: 2x SATA3 (6Gbps), 4x SATA2 (3Gbps)
10. Ethernet Ports: 4x GbE LAN ports
11. Expansion Slots: 1x PCI-E 2.0 x8 (in x8 slot), 1x Mini-PCI-E with mSATA support
12. USB Ports: 2x USB 3.0, 6x USB 2.0

Helpful notes:
1. The Supermicro Intel Atom C2758 chipset system board is ideal for low-power network and storage applications.
2. The board supports Intel QuickAssist Technology, which provides hardware acceleration for cryptography and data compression.
3. The board is compatible with a wide range of operating systems, including Windows, Linux, and FreeBSD.
