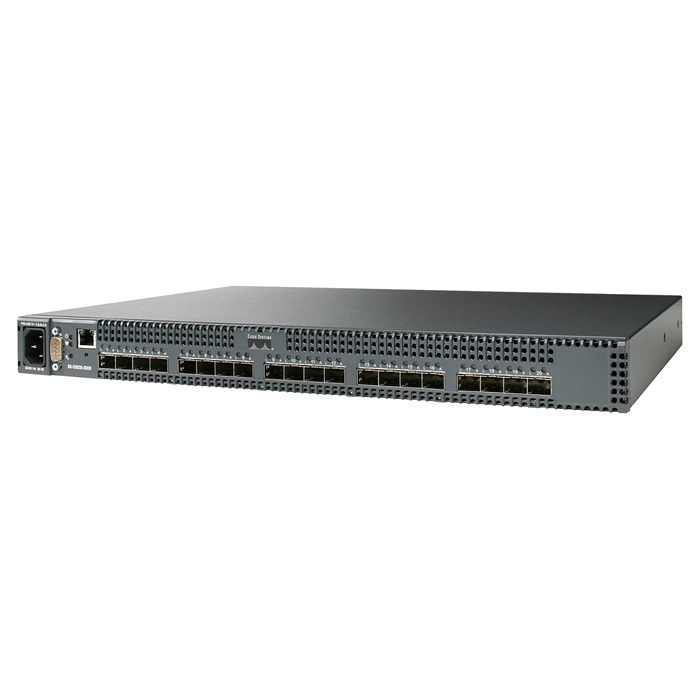

AE377A - HP Cisco MDS 9020 20-Ports 4.24Gbps Fabric Switch

1. Port speed: 4.24 Gbps
2. Number of ports: 20
3. Supported protocols: FC-AL, FC-FLA, FC-GS-3, FC-PH, FC-SW-2, FC-VI, FCP, FCP-2, FC-BB, FC-FG, FC-FS, FC-GS, FC-MI, FC-PH-2, FC-PLDA, FC-SW, FC-SW-3, FC-Tape, FC-SP, FC-LS, FC-PI, FC-DA, FC-FLA-2, FC-FS-2, FC-GS-4, FC-IFR, FC-MJS, FC-PI-2, FC-SW-4, FC-LS-2
4. Management interface: CLI, HTTP, RMON, SNMP, Telnet
5. Power consumption: 240W maximum
6. Input voltage: 100-240V AC
7. Dimensions: 16.9 x 17.3 x 1.7 inches
8. Weight: 16.8 lbs
9. Operating temperature: 32°F to 104°F
10. Humidity range: 10% to 90%
11. Rack-mountable: Yes, 1U rack height
12. Compatibility: Compatible with HP and Cisco servers and storage arrays

Notes:
1. The switch supports advanced traffic management features such as Quality of Service (QoS) and Virtual SANs (VSANs).
2. The switch can be configured with redundant power supplies for increased reliability.
3. The switch includes built-in security features such as role-based access control and port security.
