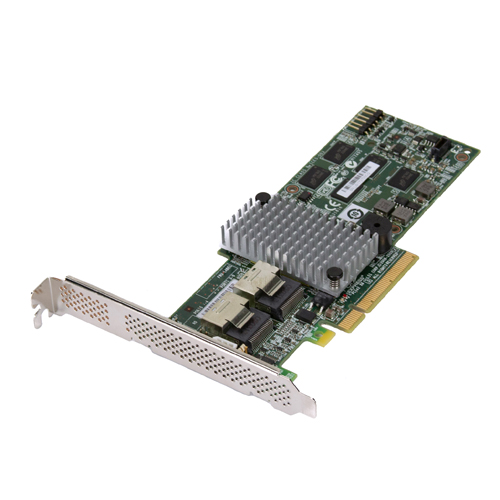

ASR-8805 - Adaptec SAS 12GB/s PCI-Express RAID Controller

1. Interface: PCI-Express 3.0 x8
2. Data Transfer Rate: 12GB/s
3. RAID Levels: 0, 1, 1E, 5, 6, 10, 50, 60
4. Cache Memory: 1GB DDR3
5. Number of Ports: 8 internal SAS/SATA ports
6. Supported Devices: SAS/SATA
7. Form Factor: Low profile MD2
8. Operating Temperature: 0°C to 55°C
9. Storage Temperature: -45°C to 105°C
10. Operating Humidity: 5% to 90% non-condensing
11. Dimensions (H x L): 2.535" x 6.6"
12. OS Support: Windows, Linux, VMware

Notes:
1. The Adaptec maxView Storage Manager software provides a user-friendly interface to monitor and manage the RAID controller.
2. The controller supports up to 256 SAS/SATA devices when used with SAS expanders.
3. The Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 1, 5, and 6.
