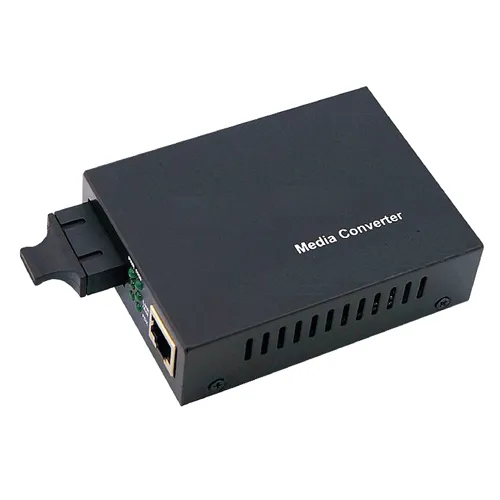

Allied ATMC1004 | Telesis AT-MC1004 1000Base-T Gigabit Ethernet to 1000SX (SC) Standalone Media Converter

1. Standards: IEEE 802.3ab, IEEE 802.3z
2. Data Transfer Rate: 1 Gbps
3. Connectivity Technology: Wired
4. Cabling Type: Ethernet 1000Base-SX, Ethernet 1000Base-T
5. Max Transfer Distance: 550m
6. Interfaces: 1 x Ethernet 1000Base-SX - SC multi-mode female x 2, 1 x Ethernet 1000Base-T - RJ-45 female
7. Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP)
8. Power Consumption: 5.5 Watts
9. Operating Temperature: 0°C to 40°C
10. Storage Temperature: -25°C to 70°C
11. Humidity Range Operating: 5% to 95% (non-condensing)
12. Dimensions (WxDxH): 3.7 in x 4.1 in x 1 in

Notes:
1. Supports both half and full duplex modes for flexible connectivity options.
2. Equipped with Link Fault Pass Through function (LFP) that enables the converter to shut down the link if a problem is detected.
3. Compact design makes it easy to install and saves space in the server room or data center.
