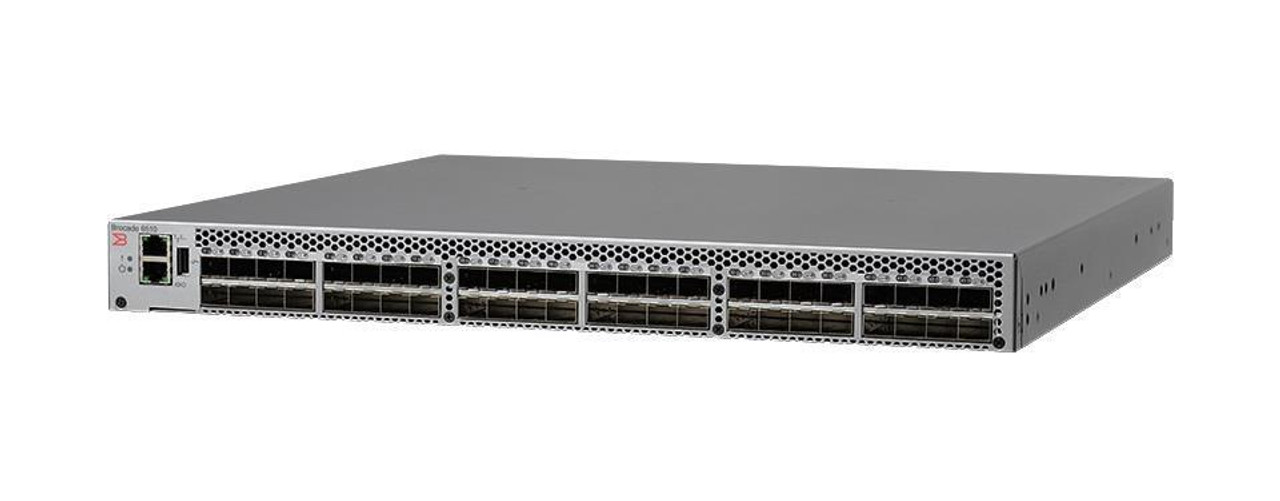

BR-6510-24-16G-R - Brocade 6510 Managed 48 x Fibre Channel Switch

1. Number of Ports: 48
2. Fibre Channel Speed: 16 Gbps
3. Supported Protocols: FC-AL, FC-AL-2, FC-BB-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FCP-2, FCP-3, FCP-4, FCP-5
4. Switching Capacity: 1.28 Tbps
5. Forwarding Rate: 190 million frames per second
6. Max Frame Size: 2112 bytes
7. Buffer Credits: 8192
8. Management Interface: CLI, Telnet, SSH, HTTP, SNMP
9. Power Supply: Dual, hot-swappable
10. Voltage Required: AC 120/230 V (50/60 Hz)
11. Dimensions (WxDxH): 17.3 in x 16.8 in x 1.7 in
12. Weight: 17.64 lbs

Notes:
1. The Brocade 6510 switch provides high-performance connectivity for storage area networks.
2. With a switching capacity of 1.28 Tbps, this switch can handle the most demanding workloads.
3. The switch supports a wide range of protocols, making it compatible with a variety of storage devices.
