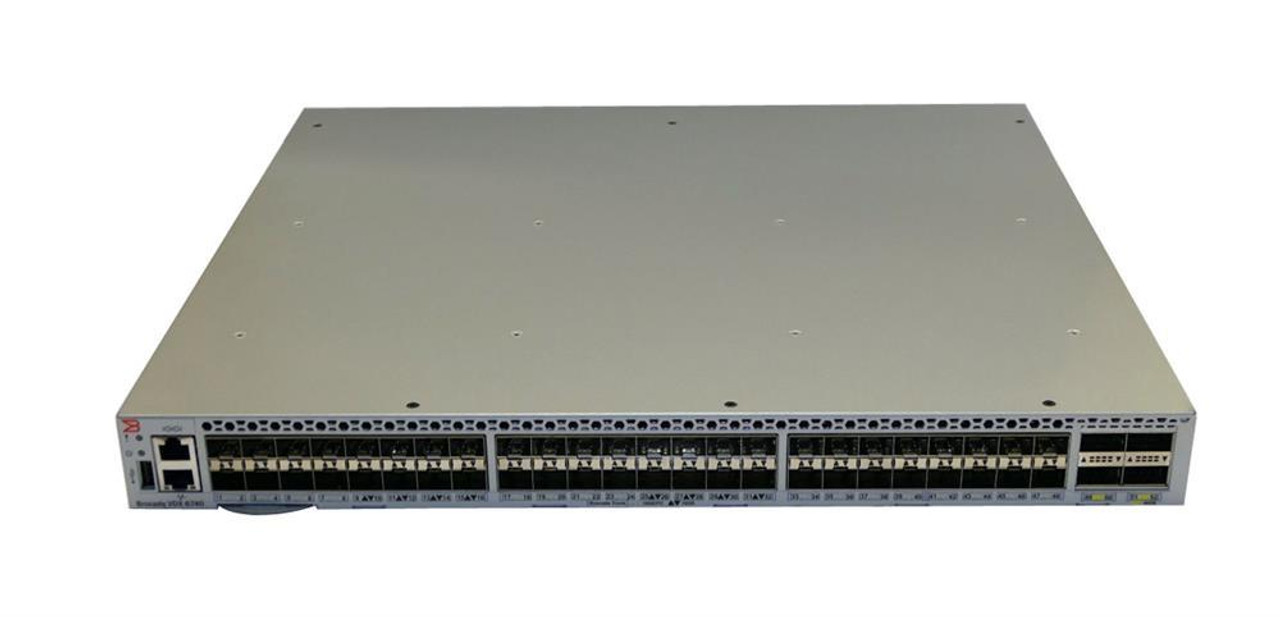

BR-VDX6740-24-F - Brocade VDX 6740 Switch

1. Port Count: 24
2. Switching Capacity: 1.28 Tbps
3. Forwarding Rate: 960 Mpps
4. Latency: 800 ns (10 GbE), 1.5 µs (40 GbE)
5. Jumbo Frame Support: Up to 9216 bytes
6. VLANs: 4096
7. MAC Addresses: 128K
8. L3 Routing Interfaces: 512
9. L2 Multicast Groups: 8K
10. Power Consumption: 250W (Max)
11. Operating Temperature: 0°C to 45°C (32°F to 113°F)
12. Dimensions: 1.72 x 17.4 x 16.0 in (4.37 x 44.2 x 40.6 cm)

Notes:
1. The Brocade VDX 6740 Switch supports OpenFlow 1.3 for software-defined networking (SDN) applications.
2. The switch features redundant, hot-swappable power supplies and fans for high availability.
3. The Brocade VDX 6740 Switch is compatible with Brocade VCS Fabric technology for simplified network management.
