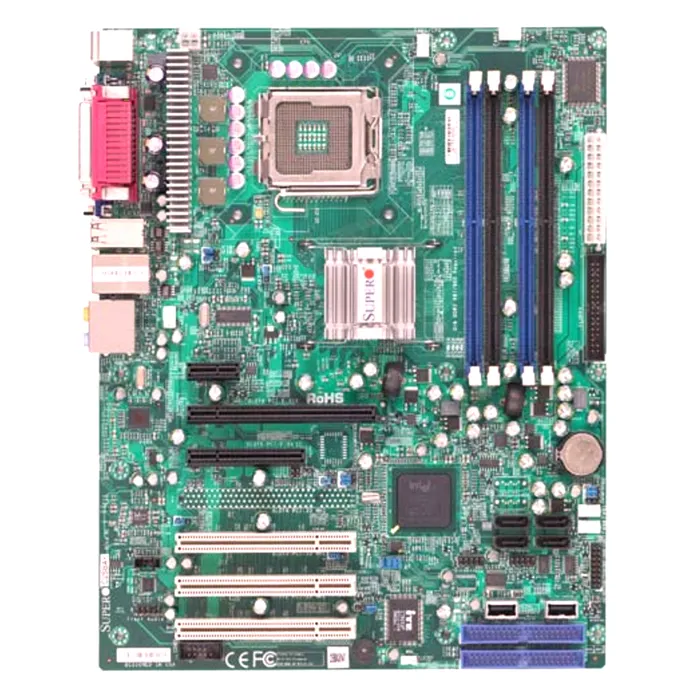

C2SBA+-B - Supermicro Core 2 Quad/ G33/ DDR2/ SATA2/ A/V/GbE/ ATX Server Motherboard

1. Processor Support: Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron Dual-Core, Celeron processors
2. Chipset: Intel G33 Express
3. Memory: 4x 240-pin DDR2 DIMM slots, up to 8GB DDR2 800/667 MHz memory support
4. Expansion Slots: 1x PCI-E x16 slot, 1x PCI-E x4 slot, 1x PCI-E x1 slot, 3x PCI 32-bit slots
5. Storage: 6x SATA2 3Gb/s ports, supports RAID 0, 1, 5, 10
6. LAN: Dual Gigabit Ethernet LAN ports with Intel 82573V and 82573L controllers
7. Audio: Realtek ALC883 7.1 HD Audio
8. USB: 8x USB 2.0 ports (4 rear, 4 via headers)
9. Form Factor: ATX form factor, 12" x 9.6" (30.48cm x 24.38cm)
10. Power Connectors: 1x 24-pin ATX power connector, 1x 8-pin ATX 12V power connector
11. BIOS: 8Mb SPI Flash EEPROM with AMI BIOS
12. Operating System Support: Windows, Linux, FreeBSD

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. The dual Gigabit Ethernet LAN ports provide redundancy and load balancing for network traffic.
3. The Realtek ALC883 audio chipset provides high-quality audio output for multimedia applications.
