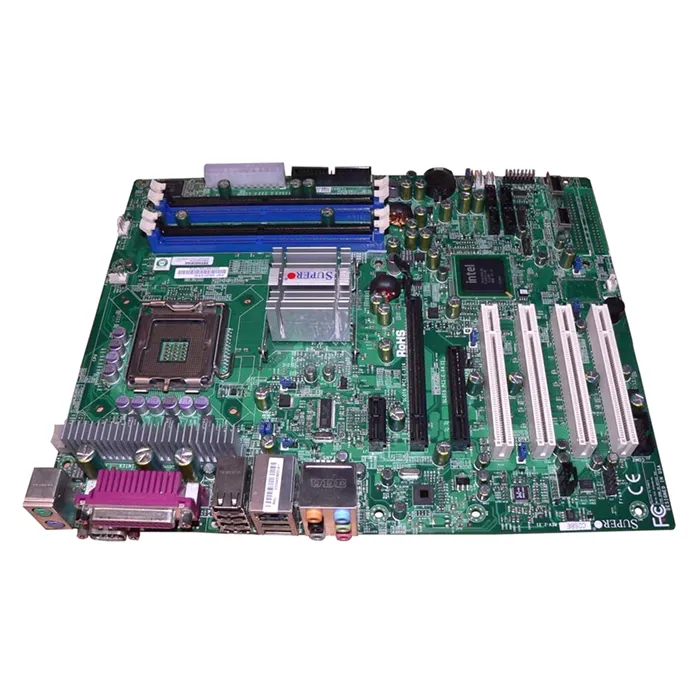

C2SBE-O - Supermicro Core 2 Quad/ P35/ DDR2/ SATA2/ A/GbE/ ATX Server Motherboard

1. Processor Support: Intel Core 2 Quad/ Duo/ Extreme, Pentium D, Pentium 4, Celeron D Processors
2. Chipset: Intel P35 Express + ICH9R
3. Memory Support: 4 x 240-pin DDR2 DIMM slots, up to 8GB DDR2 800/667 MHz memory
4. Expansion Slots: 1 x PCI-E x16, 2 x PCI-E x8, 2 x PCI-X 133/100MHz, 1 x PCI 32-bit
5. Storage: 6 x SATA2 3.0 Gbps ports, RAID 0, 1, 5, 10 support
6. Networking: Dual Gigabit Ethernet LAN ports (Intel 82573V + 82573L)
7. Audio: Realtek ALC883 7.1 HD Audio
8. USB Ports: 8 x USB 2.0 ports (4 rear, 4 via headers)
9. Form Factor: ATX, 12" x 9.6" (30.5cm x 24.4cm)
10. Power Connectors: 24-pin ATX power connector, 8-pin ATX 12V power connector
11. BIOS: 8Mb SPI Flash EEPROM with AMI BIOS
12. Management: IPMI (Intelligent Platform Management Interface) 2.0 with optional KVM-over-LAN support

Notes:
1. This motherboard supports ECC memory for data integrity and reliability.
2. The PCI-E x16 slot supports full-height, full-length expansion cards.
3. The IPMI feature allows remote management and monitoring of the server even when it is powered off.
