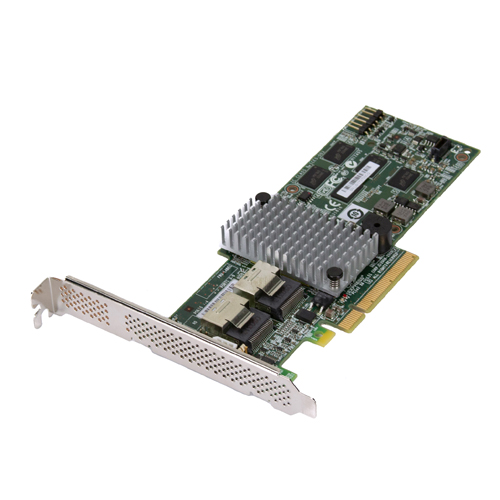

LSI L3-25121-82A | MegaRAID 8-Port SAS / SATA 6Gb/s PCI-Express 2.0 X8 RAID Controller

Here are the technical specifications for the LSI MegaRAID 8-Port SAS / SATA 6Gb/s PCI-Express 2.0 X8 RAID Controller:

1. Interface Type: PCI Express 2.0 x8
2. Data Transfer Rate: 6 Gb/s per port
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Supported Devices: SAS/SATA
5. Number of Ports: 8 internal SAS/SATA ports
6. Cache Memory: 512MB DDR2 SDRAM
7. Processor: LSI SAS2108 6Gb/s RAID-on-Chip (ROC) controller
8. Form Factor: Low profile
9. Operating Temperature: 0°C to 55°C
10. OS Support: Windows, Linux, Solaris, VMware
11. Dimensions: 6.6 x 2.5 in (16.8 x 6.4 cm)
12. Power Consumption: 10.5W typical

Helpful notes:
1. This controller supports up to 64 physical devices in a RAID configuration.
2. It has a built-in web-based management interface for easy setup and configuration.
3. The controller supports automatic rebuilds in the event of a failed drive.
