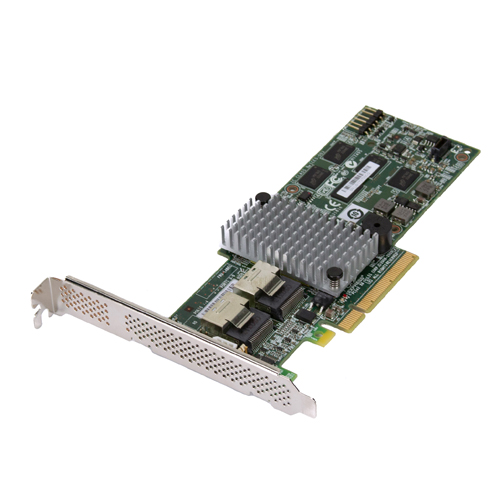

L3-25421-49B - LSI Logic MegaRAID 9286CV-8E 8-Port SAS / SATA 6GB/s PCI-Express 3.0 x 8 RAID Controller

1. Interface: PCI-Express 3.0 x 8
2. Data Transfer Rate: 6 GB/s per port
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Cache Memory: 1 GB DDR3
5. Number of Ports: 8 (SAS/SATA)
6. Supported Devices: SAS/SATA HDDs and SSDs
7. Operating System Support: Windows, Linux, Solaris, VMware
8. Processor: PowerPC 476 dual-core 1.2 GHz
9. Form Factor: Low profile
10. Dimensions: 6.6 x 2.5 in
11. Power Consumption: 15.1 W
12. MTBF: 1,000,000 hours

Notes:
1. The MegaRAID 9286CV-8E supports up to 128 devices with SAS expanders.
2. The controller features advanced data protection capabilities, including RAID 6 and 60.
3. The MegaRAID Management Suite software provides a user-friendly interface for managing and monitoring the controller.
