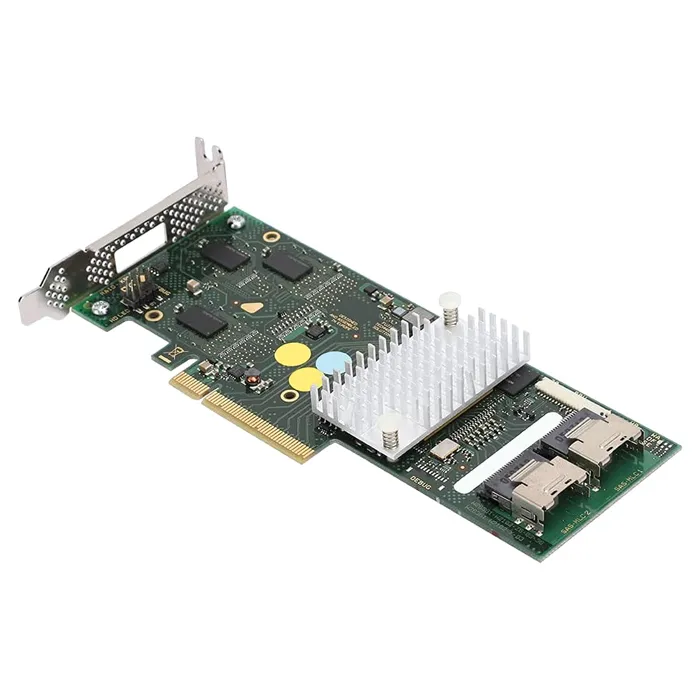

L5-25121-30 - LSI Logic 9260-4I 6GB 4Port Internal PCI Express SAS/SATA RAID Controller with 512MB DDR-II Cache

Here are 12 technical specifications for the LSI Logic 9260-4I RAID Controller:

1. Interface: PCI Express 2.0 x8
2. Data Transfer Rate: 6 Gb/s per port
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Cache Memory: 512 MB DDR-II
5. Supported Devices: SAS/SATA
6. Number of Ports: 4 internal
7. Max Storage Devices: 128
8. Processor: LSISAS2108 800 MHz RAID on Chip (ROC)
9. Form Factor: Low profile
10. Operating Temperature: 0°C to 55°C
11. Operating System Support: Windows, Linux, Solaris, VMware
12. Power Consumption: 10.6W typical

Helpful notes:
1. The LSI Logic 9260-4I RAID Controller provides high-performance data protection for internal storage systems.
2. With support for up to 128 storage devices, this controller is ideal for large-scale storage solutions.
3. The low profile form factor makes it easy to install in a variety of server configurations.
