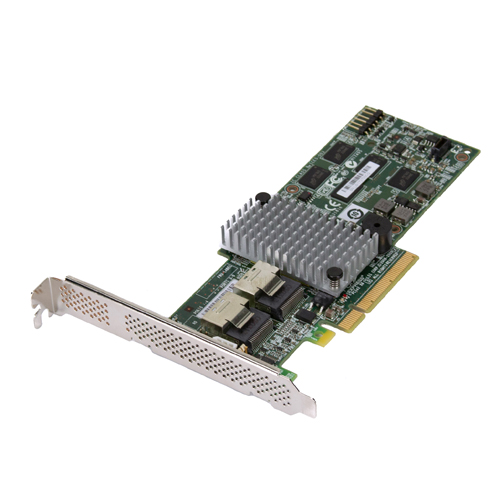

L5-25421-21 - LSI Logic MegaRAID 9286CV-8E 6Gb/s 8 External Port PCI Express 3.0 X8 SAS/SATA RAID Controller with 1GB DDR-III Cache

1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 6 Gb/s
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Cache Memory: 1GB DDR-III
5. Number of Ports: 8 External
6. Supported Devices: SAS/SATA
7. Max Storage Devices Qty: 240
8. Processor: LSISAS2208 Dual Core RAID on Chip (ROC)
9. Supported Operating Systems: Windows, Linux, Solaris, VMware
10. Dimensions (H x L): 2.536" x 6.6"
11. Power Consumption: 17.7W
12. MTBF: 1,200,000 hours

Notes:
1. The LSISAS2208 Dual Core RAID on Chip (ROC) provides high performance and reliability.
2. The MegaRAID Storage Manager software allows for easy management and configuration of the RAID controller.
3. The 1GB DDR-III cache provides improved read and write performance for large data transfers.
