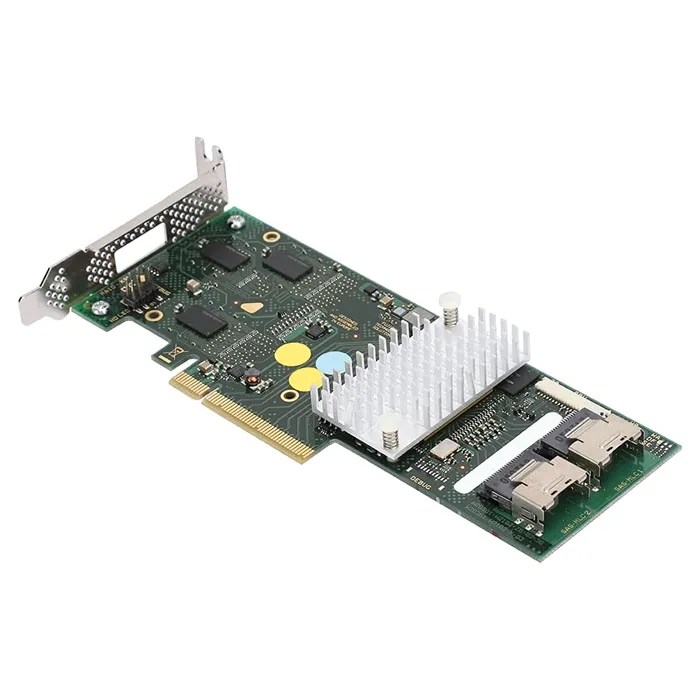

LSI00305 - LSI Logic MegaRAID 9266-4i Sgl 6GB/s 4-Port Internal PCI-Express SATA+SAS RAID Controller with 1GB DDR-III Cache Memory

1. Interface Type: PCI Express 2.0 x8
2. Data Transfer Rate: 6 Gb/s
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Supported Devices: SAS/SATA
5. Cache Memory Size: 1 GB DDR-III
6. Max Storage Devices Qty: 128
7. Processor: LSISAS2208 Dual Core RAID on Chip (ROC)
8. Form Factor: Plug-in Card
9. Supported OS: Windows, Linux, Solaris, VMware
10. Dimensions (WxDxH): 6.6 in x 2.5 in
11. Internal Connectors: 4 x SAS/SATA 6Gb/s
12. Power Consumption: 11.5 Watt (operating)

Notes:
1. The LSI Logic MegaRAID 9266-4i offers a high-performance RAID solution for servers and workstations.
2. The 1GB DDR-III cache memory provides faster access to frequently used data.
3. The LSISAS2208 Dual Core RAID on Chip (ROC) processor ensures reliable and efficient performance.
