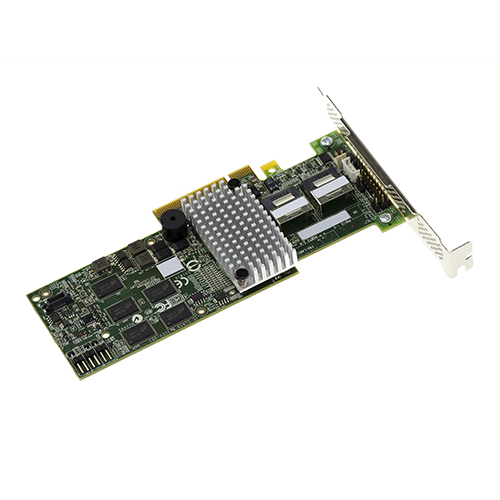

LSI LSI00407 | Logic 8-Port Int, 12GB/s SATA/sas, PCI-Express 3.0 Controller

1. Interface Type: PCIe 3.0 x8
2. Data Transfer Rate: 12 Gbps per port
3. RAID Levels: RAID 0, 1, 5, 6, 10, 50, and 60
4. Cache Memory Size: 1 GB DDR3
5. Number of Ports: 8 internal
6. Form Factor: Low profile
7. Supported Operating Systems: Windows, Linux, VMware
8. Processor: Dual-core RAID-on-Chip (ROC) 1.2 GHz
9. Power Consumption: 15.3 W
10. MTBF: 1.2 million hours
11. Operating Temperature: 0°C to 55°C
12. Dimensions (W x H): 6.6 cm x 16.8 cm

Notes:
1. Provides high-performance data protection for servers and workstations.
2. Supports up to 256 SATA or SAS devices when used with SAS expanders.
3. Offers easy-to-use management utilities for configuring RAID arrays and monitoring the health of the card.
