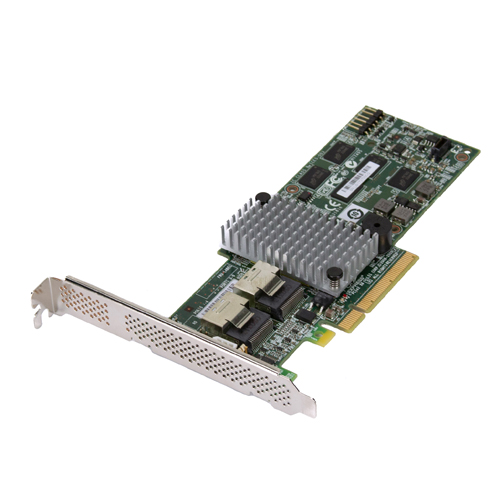

LSI00414 - LSI MegaRAID 4-Port PCI-Express 3.0 SAS/SATA RAID Controller Card

1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 12 Gbps
3. RAID Levels: 0, 1, 5, 6, 10, 50, and 60
4. Supported Devices: SAS/SATA
5. Number of Ports: 4
6. Cache Memory Size: 1 GB DDR3
7. Processor: Dual-core RAID-on-Chip (ROC)
8. Operating Temperature: 0°C to 55°C
9. Operating Humidity: 5% to 90%
10. Dimensions: 6.6 x 2.7 in
11. OS Support: Windows, Linux, VMware
12. Power Consumption: 11W

Notes:
1. The card supports up to 64 devices in a single RAID array.
2. It features a built-in web-based management utility for easy configuration and monitoring.
3. The card supports hot-swapping of drives for easy maintenance and replacement.
