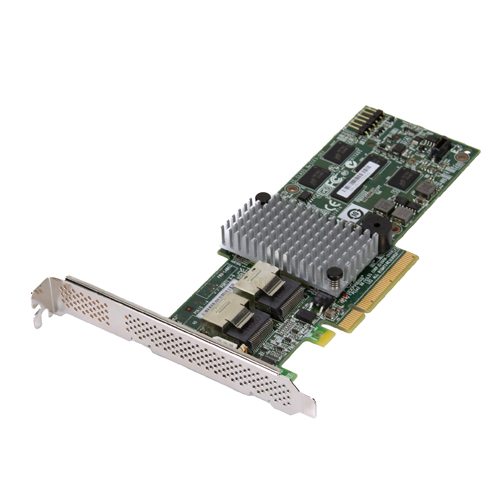

LSI00417 - LSI Logic 12GB/s PCI-Express 3.0 8-Port Internal 1g DDR-III SATA/SAS RAID Controller

1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 12 Gb/s
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Cache Memory Size: 1 GB DDR3
5. Number of Ports: 8 Internal Ports
6. Supported Devices: SATA/SAS
7. Processor: LSISAS3108 Dual-Core RAID on Chip (ROC)
8. Form Factor: Low Profile
9. Operating Temperature: 0°C to 55°C
10. Operating Voltage: +3.3V, +12V
11. OS Support: Windows, Linux, Solaris, VMware
12. Dimensions: 6.6 x 2.5 x 0.6 inches

Notes:
1. The LSISAS3108 processor provides high-performance RAID data protection for up to 240 SATA or SAS devices.
2. The 1 GB DDR3 cache memory helps to accelerate read and write operations, improving overall system performance.
3. The low profile form factor makes it suitable for installation in compact server systems.
