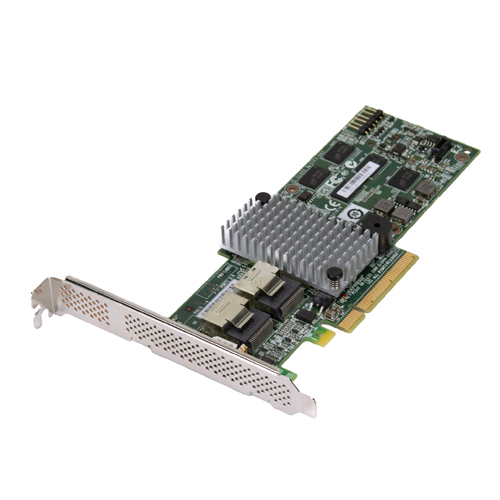

LSI00419 - LSI Logic 12GB/s PCI Expressxp 3.0 4-Port Internal SAS/SATA RAID Controller

Here are the technical specifications for LSI00419 - LSI Logic 12GB/s PCI Expressxp 3.0 4-Port Internal SAS/SATA RAID Controller:

1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 12 Gb/s
3. RAID Levels: 0, 1, 5, 6, 10, 50, and 60
4. Supported Devices: SAS or SATA
5. Number of Ports: 4 internal ports
6. Processor: LSISAS3108 1.2 GHz PowerPC
7. Cache Memory: 1 GB DDR3
8. Form Factor: Low profile
9. Operating System Support: Windows, Linux, VMware
10. Dimensions: 6.6 x 2.5 in
11. Power Consumption: 14.2 watts
12. MTBF: 2,000,000 hours

Helpful notes:
1. This RAID controller supports up to 256 SAS or SATA devices when used with SAS expanders.
2. The LSISAS3108 processor provides high performance and reliability for demanding applications.
3. The low profile form factor makes this controller ideal for use in space-constrained systems.
