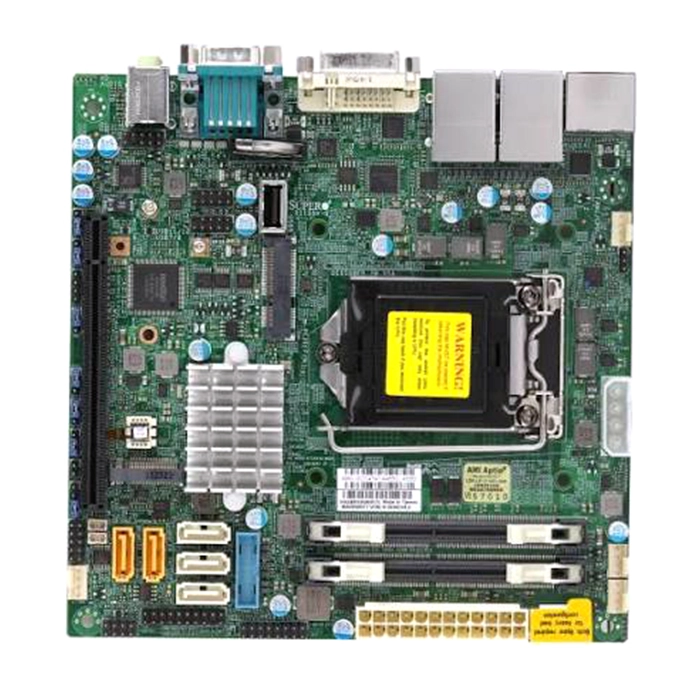

MBD-X11SSV-Q-B - Supermicro System Board (Motherboard) with Intel Q170 Chipset CPU

1. Form Factor: Mini-ITX
2. Processor Socket: LGA 1151
3. Supported CPU Series: Intel 6th/7th Gen Core i3/i5/i7, Pentium, Celeron
4. Chipset: Intel Q170 Express
5. Memory Slots: 2x 288-pin DDR4 DIMM slots
6. Maximum Memory Supported: 32GB
7. Memory Speed Supported: DDR4 2133 MHz
8. Expansion Slots: 1x PCIe 3.0 x16 slot, 1x M.2 (PCIe 3.0 x4 or SATA3)
9. SATA Ports: 4x SATA3 (6 Gbps) ports
10. LAN: 2x Gigabit Ethernet ports (Intel i219LM and i211AT)
11. USB Ports: 6x USB 3.0 ports (2 rear, 4 via headers), 4x USB 2.0 ports (2 rear, 2 via headers)
12. Graphics: Integrated Intel HD Graphics with HDMI, DisplayPort, and VGA outputs.

Helpful Notes:
1. This motherboard is designed for use in small form factor servers and workstations.
2. The M.2 slot supports both PCIe and SATA-based M.2 SSDs for high-speed storage.
3. The dual Gigabit Ethernet ports provide redundancy and load balancing for network connections.
