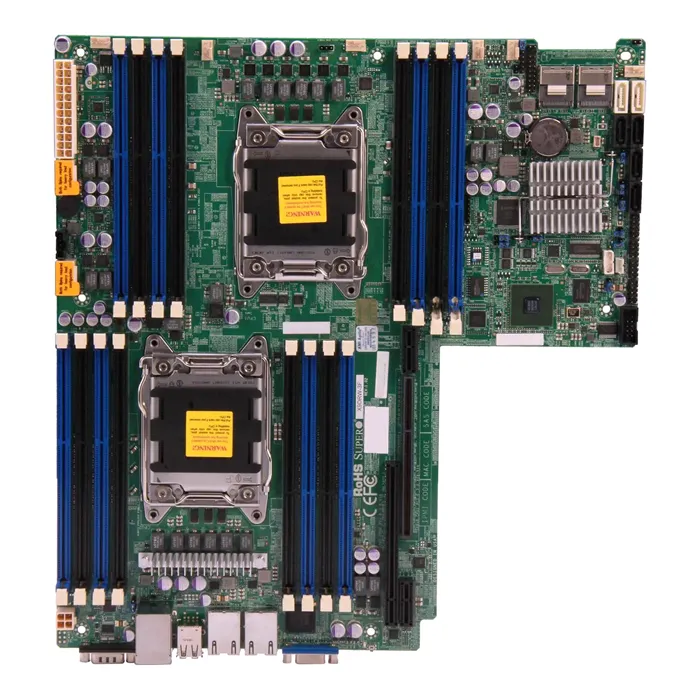

MBD-X9DRW-3F-O - SuperMicro System Board (Motherboard) with Intel C606 Chipset CPU

1. Form Factor: Extended ATX (E-ATX)
2. Processor: Dual Socket R (LGA 2011)
3. Chipset: Intel C606
4. Memory: 16x 240-pin DDR3 DIMM slots, up to 512GB ECC Registered memory
5. Expansion Slots: 3x PCI-E 3.0 x16 slots, 3x PCI-E 3.0 x8 slots
6. SATA: 8x SATA2 (3Gb/s) ports, 2x SATA3 (6Gb/s) ports
7. LAN: Dual Port Gigabit Ethernet
8. USB: 8x USB 2.0 ports (4 rear, 4 via header), 2x USB 3.0 ports (rear)
9. Graphics: ASPEED AST2400 BMC Graphics
10. Audio: N/A
11. Power Connectors: 2x 24-pin ATX power connectors, 1x 8-pin ATX 12V power connector
12. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Notes:
1. This motherboard supports Intel Xeon E5-2600 and E5-2600 v2 processors.
2. The 16 memory slots support DDR3 ECC Registered memory with speeds up to 1866MHz.
3. The IPMI 2.0 management interface allows for remote server management and monitoring.
