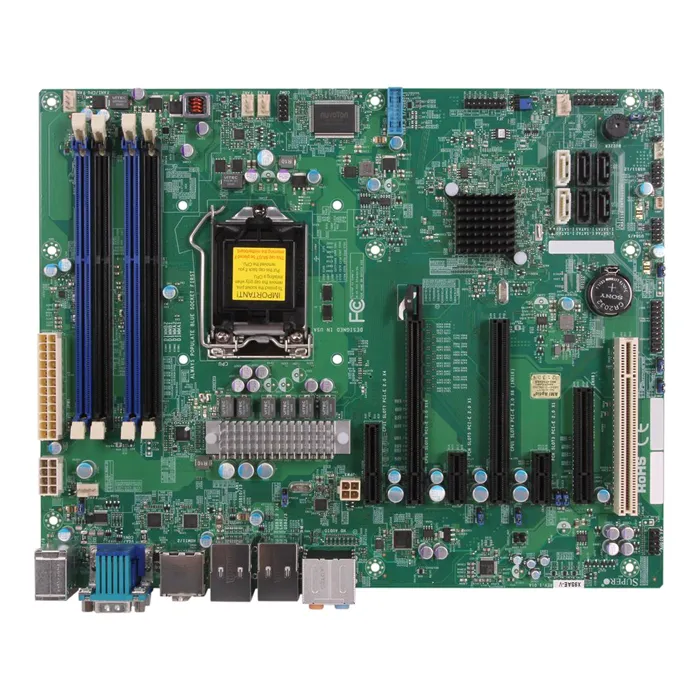

Supermicro MBD-X9SAE-V-B | LGA1155/ Intel C216 Express PCH/ DDR3/ SATA3/USB3.0/ A/2GbE/ ATX Server Motherboard

1. Form Factor: ATX
2. Processor: LGA1155
3. Chipset: Intel C216 Express PCH
4. Memory: DDR3
5. Memory Slots: 4x 240-pin DDR3 DIMM slots
6. Max Memory Capacity: 32GB
7. SATA: 6x SATA3 ports
8. USB: 4x USB 3.0 ports (2 rear, 2 via header)
9. LAN: Dual Gigabit Ethernet ports
10. Expansion Slots: 1x PCI-E 3.0 x16, 1x PCI-E 2.0 x8, 1x PCI-E 2.0 x4 (in x8), 2x PCI 32-bit slots
11. Audio: Realtek ALC889 7.1 HD Audio
12. Power Connectors: 1x 24pin ATX main power connector, 1x 8pin ATX 12V power connector

Notes:
1. This motherboard supports Intel Xeon E3-1200 v2 processors, as well as 2nd and 3rd generation Intel Core i3, i5, and i7 processors.
2. The dual Gigabit Ethernet ports support teaming and failover, allowing for increased network reliability and performance.
3. The motherboard also features IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, allowing for remote management and monitoring of the server.
