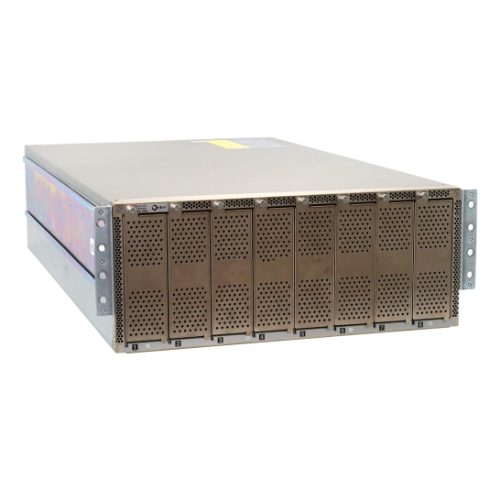

MX960BASE-AC-ECM - Juniper MX960 Services Router Chassis

1. Dimensions: 22.4 x 17.5 x 30.3 inches
2. Weight: 260 lbs (without power supplies)
3. Power Input: AC - 100-240V, 50-60Hz, 16A max; DC - -48V, 40A max
4. Cooling: Front-to-back airflow, 6 fans, hot-swappable
5. Slots: 14 slots for MPCs (Modular Port Concentrators) and MICs (Modular Interface Cards)
6. Capacity: Up to 960 Gbps throughput
7. Redundancy: Dual Routing Engine slots, dual power supply bays, and dual fan trays
8. Management: Junos OS command-line interface (CLI), Juniper Networks J-Web interface, NETCONF, Junos XML API
9. Interfaces: 10/100/1000 Ethernet, 10GbE, 40GbE, 100GbE, SONET/SDH, ATM, TDM/DS0-DS3/E1-E3
10. Security: Junos OS Firewall filters, NAT, IPSec VPN, SSL VPN, MACsec, L2/L3 VPN
11. Quality of Service (QoS): Hierarchical QoS, CoS, DiffServ, MPLS Traffic Engineering
12. Reliability: Mean Time Between Failures (MTBF) of 11 years

Notes:
1. The MX960 is designed for high-performance, carrier-grade applications.
2. The chassis is built with a modular architecture, allowing for flexible and scalable configurations.
3. The router supports advanced features such as MPLS, multicast, and IPv6.
