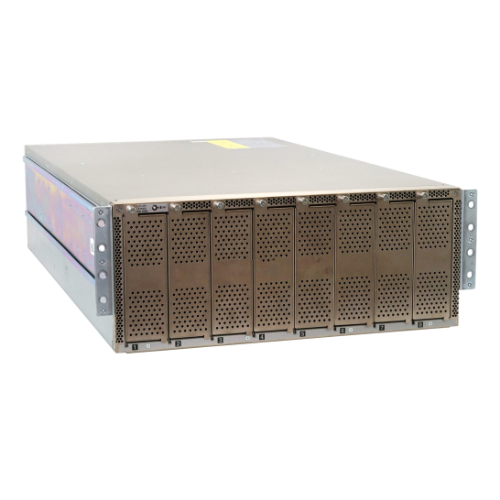

MX960BASE3-DC - Juniper MX960 Ethernet Service Router Chassis

1. Dimensions: 23.6 x 17.5 x 34.7 inches
2. Weight: 350 lbs
3. Power Consumption: 8.4 kW
4. Cooling System: Front-to-back cooling with redundant fans
5. Power Supply: Dual DC power supplies
6. Routing Engine: Dual RE-S-2000
7. Switch Fabric: Dual SFM-X
8. Maximum Throughput: 960 Gbps
9. Maximum Capacity: 960 million packets per second
10. Number of Slots: 14 slots for MPCs (Modular Port Concentrators) and MICs (Modular Interface Cards)
11. Supported Protocols: IPv4, IPv6, MPLS, BGP, OSPF, IS-IS, LDP, RSVP-TE, PIM, IGMP, and more
12. Operating System: Junos OS

Notes:
1. The MX960 is designed for high-density, high-performance Ethernet services in large-scale service provider and enterprise networks.
2. The chassis is highly modular and can accommodate a wide range of interface types and densities.
3. The MX960 is built for reliability and resiliency, with redundant components and hot-swappable modules for easy maintenance and upgrades.
