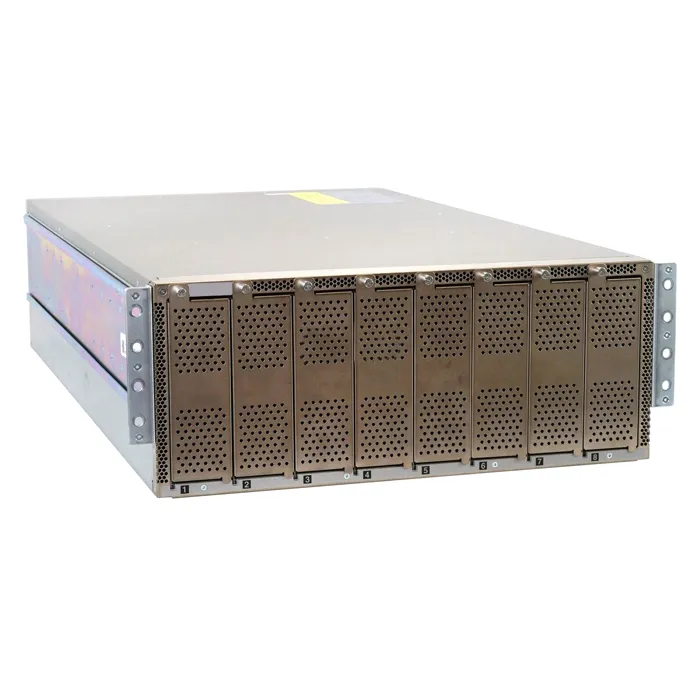

N77-C7706-B23S2E | Cisco Nexus 7700 6-Slots Layer 2 9U Rack mountable Switch Chassis

1. Dimensions: 14.2 x 17.3 x 22.5 inches
2. Weight: 110 lbs
3. Power supply: AC 100/240 V ( 50/60 Hz )
4. Cooling system: 4 fan trays with redundant fans
5. Switching capacity: 1.5 Tbps
6. Forwarding rate: 1.2 Bpps
7. Supported protocols: BGP, OSPF, IS-IS, EIGRP, RIP, MPLS, VRF-Lite, VXLAN, etc.
8. Maximum number of VLANs: 4096
9. Maximum number of MAC addresses: 256,000
10. Maximum number of routes: 1,000,000
11. Interfaces: 6 x 40 Gigabit Ethernet QSFP+, 24 x 10 Gigabit Ethernet SFP+, 2 x 1 Gigabit Ethernet RJ-45, 1 x management RJ-45
12. Operating temperature: 32°F to 104°F (0°C to 40°C)

Helpful notes:
1. The Cisco Nexus 7706 is a highly scalable and versatile switch suitable for large data centers and service provider networks.
2. The switch supports advanced features such as virtual extensible LAN (VXLAN) and segment routing (SR).
3. The Cisco Nexus 7706 comes with a modular design, allowing for easy upgrades and expansion.
