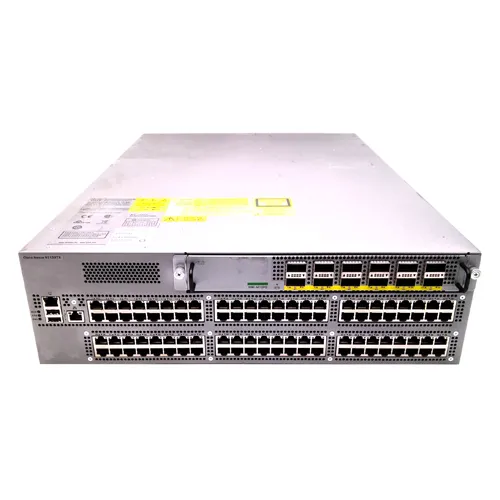

N9K-C93128TX - Cisco Nexus 9300 Platform Switch

Here are the technical specifications for the Cisco Nexus 9300 Platform Switch (N9K-C93128TX):

1. Switching capacity: 2.56 Tbps
2. Forwarding rate: 1.44 Bpps
3. Number of ports: 96 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28
4. Buffer size: 16 GB
5. Latency: 1.5 microseconds
6. Power supply: 2+1 redundant hot-swappable AC or DC
7. Maximum power consumption: 400W
8. Operating temperature: 0°C to 45°C
9. Operating humidity: 5% to 95% noncondensing
10. Dimensions (H x W x D): 1.72 x 17.3 x 22.5 inches
11. Weight: 22.7 lbs
12. Supported protocols: BGP, OSPF, EIGRP, IS-IS, RIP, VXLAN, MPLS, and more.

Helpful notes:
1. The Cisco Nexus 9300 Platform Switch is ideal for data center access and aggregation layers.
2. It supports advanced features such as Virtual Port Channel (vPC) and FabricPath.
3. The switch is designed to provide high availability with features such as hot-swappable power supplies and fans.
