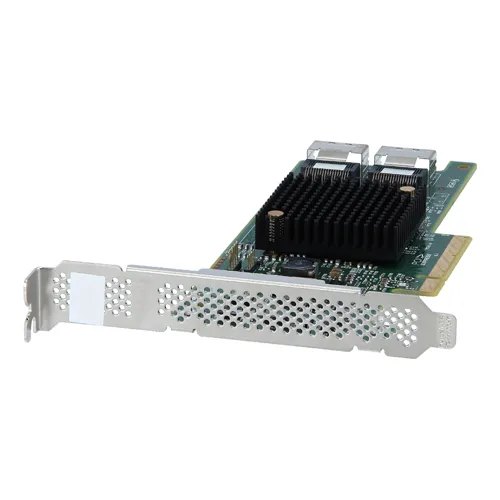

DELL NCTC4 | NCTC4 Hba330 12gb/s Sas Host Bus Adapter Controller For Dell Emc Poweredge Mx740c System Pull

Here are the technical specifications for the Dell NCTC4 HBA330 SAS Host Bus Adapter:

1. Interface Type: PCIe 3.0 x8
2. Data Transfer Rate: 12 Gbps
3. Number of Ports: 2
4. RAID Level: RAID 0, RAID 1, RAID 10
5. Supported Devices: Hard drive, solid state drive
6. Processor: LSI SAS 3008
7. Cache Memory Size: 1 GB
8. Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
9. Form Factor: Plug-in card
10. Dimensions (WxDxH): 6.6 cm x 16.7 cm
11. Weight: 68 g
12. Power Consumption: 11.5 W (maximum)

Helpful Notes:
1. The Dell NCTC4 HBA330 is a high-performance SAS host bus adapter that provides reliable connectivity for Dell EMC PowerEdge MX740c servers.
2. With support for RAID 0, RAID 1, and RAID 10, this HBA330 controller offers data protection and redundancy for critical applications.
3. The LSI SAS 3008 processor and 1 GB cache memory ensure fast and efficient data transfer rates, making this HBA330 ideal for demanding workloads.
