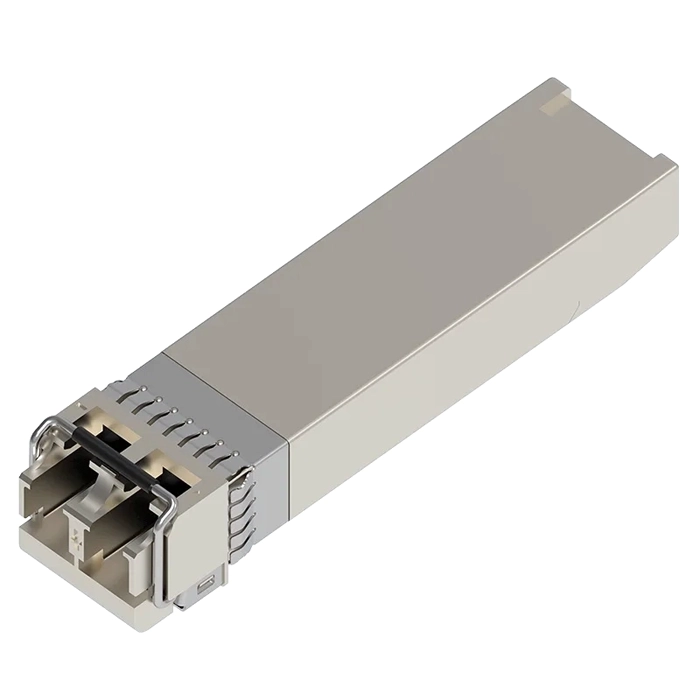

Nortel NTTP06AF | OpTera Ge SX / FC100 MX Optical SFP Transceiver Module

Here are 12 technical specifications for the Nortel OpTera Ge SX / FC100 MX Optical SFP Transceiver Module:

1. Data transfer rate: 1.25 Gbps
2. Wavelength: 850 nm
3. Connector type: LC
4. Fiber type: Multimode
5. Maximum cable distance: 550 m
6. Operating temperature range: 0°C to 70°C
7. Voltage supply: 3.3V
8. Power consumption: 1.2W
9. Digital diagnostic monitoring: Yes
10. Compliance standards: RoHS, MSA, IEEE 802.3z
11. Form factor: SFP (Small Form-factor Pluggable)
12. Compatible with Nortel OpTera Ge SX and FC100 MX systems

Helpful notes:
1. This transceiver module is hot-swappable, allowing for easy installation and replacement without powering down the system.
2. The digital diagnostic monitoring feature provides real-time information on the module's performance and health.
3. The LC connector type is a popular choice for high-speed data transmission due to its small size and low insertion loss.
