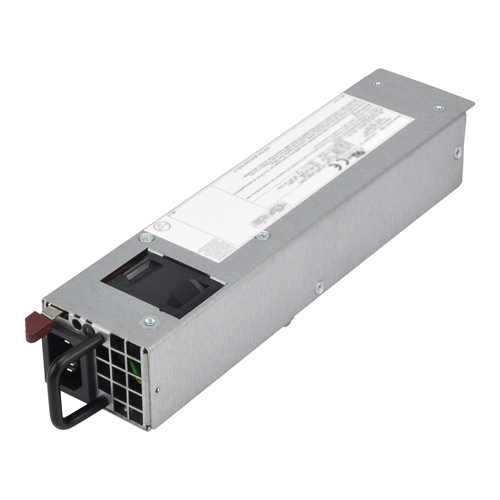

PWS-0050-M - Supermicro 380-Watts Power Module

1. Power Output: 380 Watts
2. Input Voltage: AC 100-240V
3. Frequency: 50-60Hz
4. Efficiency: 80 PLUS Bronze Certified
5. Cooling System: 40mm PWM Fan
6. Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 2x 4-pin peripheral power connectors, 2x SATA power connectors, 1x floppy power connector
7. Protection: Over Voltage Protection, Over Current Protection, Short Circuit Protection, Over Power Protection, Under Voltage Protection
8. Dimensions: 54.5mm (H) x 81.5mm (W) x 220mm (D)
9. Compatibility: Supermicro 1U chassis (SC512, SC513, SC810, SC811, SC813, SC814, SC815, SC816, SC818, SC819, SC111, SC113, SC116, SC119, SC504, SC505, SC508, SC509, SC510, SC512F, SC513L, SC514, SC515, SC516, SC517, SC519, SC811, SC813, SC814, SC815, SC816, SC818, SC819, SC111, SC113, SC116, SC119, SC504, SC505, SC508, SC509, SC510, SC512F, SC513L, SC514, SC515, SC516, SC517, SC519)
10. Certification: UL, TUV, CB, CCC, FCC, CE, C-TICK
11. MTBF: 100,000 hours
12. Operating Temperature: 0°C to 50°C

Notes:
1. This power module is designed for use with Supermicro 1U chassis and is not compatible with other brands or models.
2. The 80 PLUS Bronze certification ensures high efficiency and lower power consumption, resulting in cost savings and reduced environmental impact.
3. The compact size and efficient cooling system make this power module ideal for space-constrained server environments.
