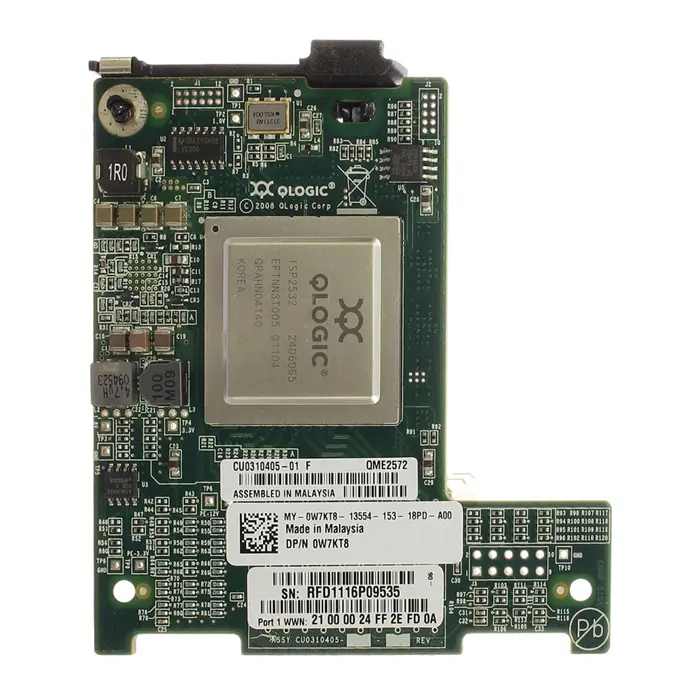

Dell QME2572 | QLogic QME2572 8Gb Fibre Channel HBA Mezzanine Card

1. Interface Type: PCI Express 2.0 x8
2. Data Transfer Rate: 8.5 Gbps Fibre Channel
3. Connectivity Technology: Wired
4. Ports Qty: 2 ports
5. Fibre Channel: FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-2, FCP-3, FC-PI
6. Processor: QLogic QLE2562
7. OS Required: Microsoft Windows Server 2003, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, VMware ESX 4.0, VMware ESXi 4.0, VMware ESXi 5.0, VMware ESXi 5.1, VMware ESXi 5.5, VMware ESXi 6.0, VMware ESXi 6.5
8. Dimensions (WxDxH): 2.7 in x 6.6 in
9. Weight: 3.53 oz
10. Compliant Standards: FCC Class A certified, UL, TUV, C-Tick, BSMI, VCCI Class A ITE, MSIP, RoHS, ICES Class A, KCC Class A, CSA NRTL/C
11. Designed for: Dell PowerEdge M420, M520, M620, M630, M820, M830, M915, R320, R420, R520, R620, R630, R715, R720, R720xd, R820, R920, T320, T420, T620
12. Manufacturer Warranty: 1-year warranty

Helpful Notes:
1. The QME2572 is a high-performance 8Gb Fibre Channel HBA designed for Dell PowerEdge blade servers.
2. With two ports, it provides redundant paths to storage networks for increased reliability.
3. The QLogic QLE2562 processor ensures low latency and high throughput for demanding applications.
