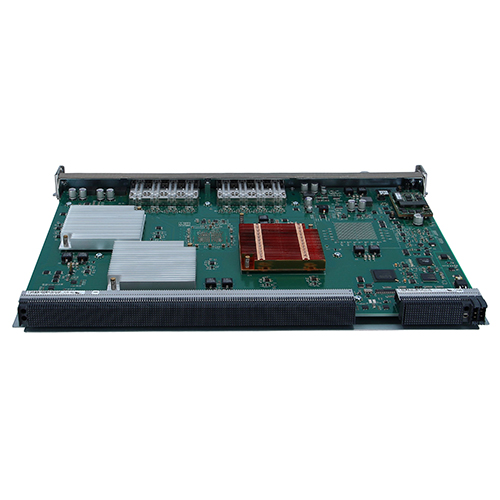

Brocade SX-FISF | FSX Fabric Module

1. Ports: 24/48/64 16 Gbps Fibre Channel ports
2. Maximum Frame Size: 2112 bytes
3. Switching Capacity: 2.56 Tbps
4. Forwarding Rate: 1.92 Bpps
5. Buffer Credits: 8192 per port
6. Latency: 700 ns (cut-through routing)
7. Power Consumption: 200W (typical)
8. Operating Temperature: 0°C to 40°C (32°F to 104°F)
9. Storage Temperature: -25°C to 70°C (-13°F to 158°F)
10. Humidity: 10% to 85% non-condensing
11. Dimensions: 40.3 cm x 30.5 cm x 4.3 cm (15.9 in x 12 in x 1.7 in)
12. Weight: 3.63 kg (8 lbs)

Helpful notes:
1. The Brocade FSX Fabric Module supports hot-swappable SFP+ optical transceivers for flexible connectivity options.
2. The module is compatible with Brocade Fabric OS, which provides advanced features such as traffic isolation, QoS, and fabric-wide monitoring.
3. The FSX Fabric Module can be easily integrated into existing Brocade SAN fabrics for seamless scalability and management.
