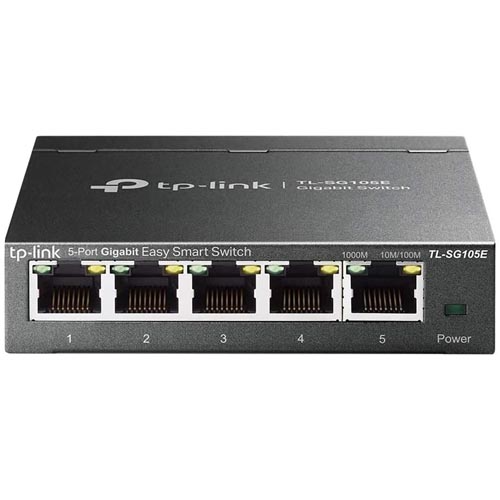

TL-SG105E - TP-LINK 5-Port 10/100/1000Base-T Gigabit Ethernet Switch - GTD

Hardware Specifications:

• Ports: 5 x 10/100/1000Mbps RJ45 Ports
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fanless Design: The switch operates without a fan, making it silent and energy-efficient.
• External Power Supply: 5V/0.6A
• Dimensions (W x D x H): 3.9 x 3.9 x 1.0 inches (99.8 x 98 x 25 mm)

Performance:

• Switching Capacity: 10Gbps
• Max Power Consumption: 2.57W
• Packet Forwarding Rate: 7.4Mpps
• MAC Address Table: 2K
• Jumbo Frame Support: 9KB

Software Features:

• Quality of Service (QoS): Supports IEEE 802.1p/DSCP QoS to prioritize traffic and optimize bandwidth utilization.
• Port Mirroring: Allows you to monitor network traffic by mirroring data from one port to another.
• Port Trunking: Support for IEEE 802.3ad LACP (Link Aggregation Control Protocol) for increased bandwidth.
• IGMP Snooping: Helps manage multicast traffic for a more efficient network.
• Loop Prevention: Detects and prevents network loops.
• VLAN Support: Supports 802.1Q VLAN for network segmentation and traffic isolation.
• IGMP Filtering: Filters out multicast streams.
• DoS Defense: Protects against malicious network attacks.

Management:

• Web-based Management: The switch can be configured and managed through a web-based interface.
• Static Link Aggregation: Up to 5 link aggregation groups can be configured, with up to 8 ports in each group.
• Mirror: Tx/Rx/Both: You can mirror traffic from one or more ports.
• Cable Diagnostics: The switch can help diagnose cable issues.
• Factory Reset: You can reset the switch to its factory default settings.
• System Log: The switch keeps a log of events for diagnostic purposes.

Security:

• • Access Control List (ACL): Supports MAC-based ACL and IEEE 802.1X port-based authentication.
  • Secure Web Management: Provides a secure web interface for configuration.
  • SSL/SSH Encrypted Management: Ensures secure management of the switch.
