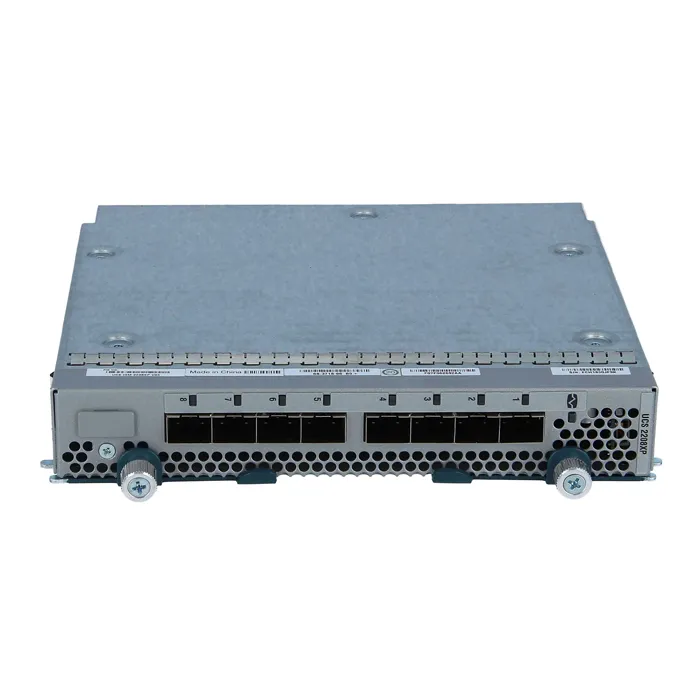

Cisco UCS-IOM-2208XP-RF | UCS 2208XP Fabric Extender Expansion Module 8 Ports

Here are the technical specifications for the Cisco UCS 2208XP Fabric Extender:

1. Data Transfer Rate: 10 Gbps
2. Cabling Type: Ethernet 10GBase-KX4
3. Interfaces: 8 x network - Ethernet 10GBase-KX4
4. Dimensions (WxDxH): 7.6 in x 7.3 in x 1.1 in
5. Weight: 1.1 lbs
6. Designed For: UCS 5108 Blade Server Chassis, 5108 Blade Server Chassis SmartPlay Select C220 M5SX Entry, SmartPlay Select C220 M5SX Plus, SmartPlay Select C240 M5L Entry, SmartPlay Select C240 M5L Plus, SmartPlay Select C240 M5SX Entry, SmartPlay Select C240 M5SX Plus
7. Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3ap, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
8. Remote Management Protocol: SNMP, RMON, CLI
9. Features: VLAN support, Quality of Service (QoS), Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Access Control List (ACL) support, Priority-Based Flow Control (PFC), Data Center Bridging Exchange (DCBX) support, Enhanced Transmission Selection (ETS), Class of Service (CoS), Transparent (N_Port ID Virtualization - NPIV) mode support, Registered State Change Notification (RSCN) support, Virtual Extensible LAN (VXLAN)
10. Power Consumption Operational: 26.5 Watt
11. Operating Temperature: 32°F to 104°F (0°C to 40°C)
12. Humidity Range Operating: 5 - 95% (non-condensing)

Helpful Notes:
1. The Cisco UCS 2208XP Fabric Extender is designed to increase network connectivity and scalability in data centers.
2. It supports a variety of Ethernet standards, including 10GBase-KX4 and IEEE 802.3ae.
3. With features like VLAN support and Quality of Service (QoS), this fabric extender is ideal for high-performance computing environments.
