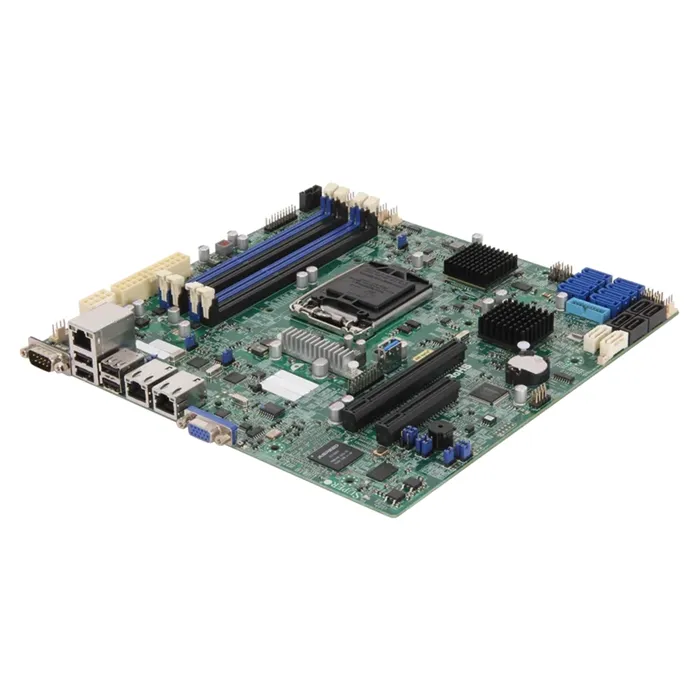

X10SL7-F - Supermicro Intel Xeon E3-1200 v3/v4 C222 Chipset micro-ATX System Board (Motherboard) Socket H3 LGA-1150

1. Form Factor: micro-ATX
2. Processor Socket: LGA1150
3. Chipset Type: Intel C222
4. Compatible Processors: Intel Xeon E3-1200 v3/v4, 4th/5th Gen Core i3, Pentium, Celeron
5. Max Supported Memory: 32GB DDR3 ECC/non-ECC UDIMM
6. Memory Slots: 4x 240-pin DIMM
7. Expansion Slots: 1x PCI-E 3.0 x16, 1x PCI-E 2.0 x8 (in x16), 1x PCI-E 2.0 x4 (in x8), 1x PCI-E 2.0 x1 (in x4)
8. SATA Ports: 6x SATA3 (6Gbps) ports
9. LAN: Dual Gigabit Ethernet ports (Intel i210AT)
10. USB Ports: 4x USB 3.0 (2 rear, 2 via header), 8x USB 2.0 (2 rear, 6 via header)
11. Graphics: Aspeed AST2400 BMC
12. Audio: Realtek ALC888 7.1 HD Audio

Notes:
1. Supports Intel Xeon E3-1200 v3/v4 processors for high-performance computing.
2. Features dual Gigabit Ethernet ports for fast and reliable network connectivity.
3. Supports up to 32GB DDR3 ECC/non-ECC UDIMM memory for improved system performance and stability.
