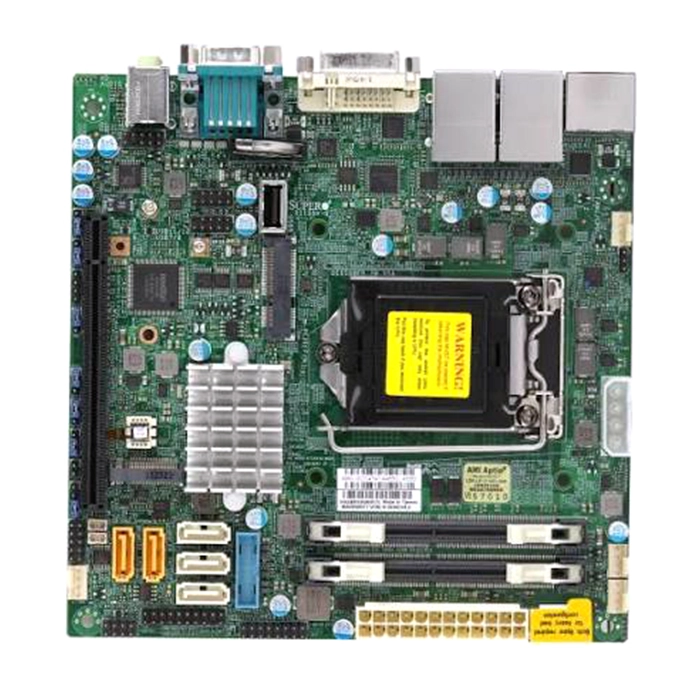

X11SSV-Q-O - Supermicro LGA1151/ Intel Q170/ DDR4/ SATA3/USB3.0/ M.2/ A/2GbE/ Mini-ITX Motherboard

1. Form Factor: Mini-ITX
2. Processor Support: Intel 6th/7th Gen Core i3/i5/i7, Pentium, Celeron processors
3. Chipset: Intel Q170
4. Memory Support: 2x DDR4 DIMM slots, up to 32GB
5. Expansion Slots: 1x PCIe 3.0 x16 slot, 1x M.2 slot
6. Storage: 4x SATA3 6Gb/s ports, 1x M.2 slot
7. USB Ports: 6x USB 3.0 ports (4 rear, 2 via header), 4x USB 2.0 ports (2 rear, 2 via header)
8. Networking: 2x Gigabit Ethernet LAN ports
9. Audio: Realtek ALC888S HD Audio
10. Graphics: Integrated Intel HD Graphics
11. Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector
12. BIOS: 128Mb SPI Flash EEPROM with AMI BIOS

Notes:
1. This motherboard is ideal for small form factor builds and home theater PCs.
2. The M.2 slot supports both SATA and PCIe SSDs for fast storage options.
3. With dual Gigabit Ethernet ports, this motherboard is great for networking and server applications.
