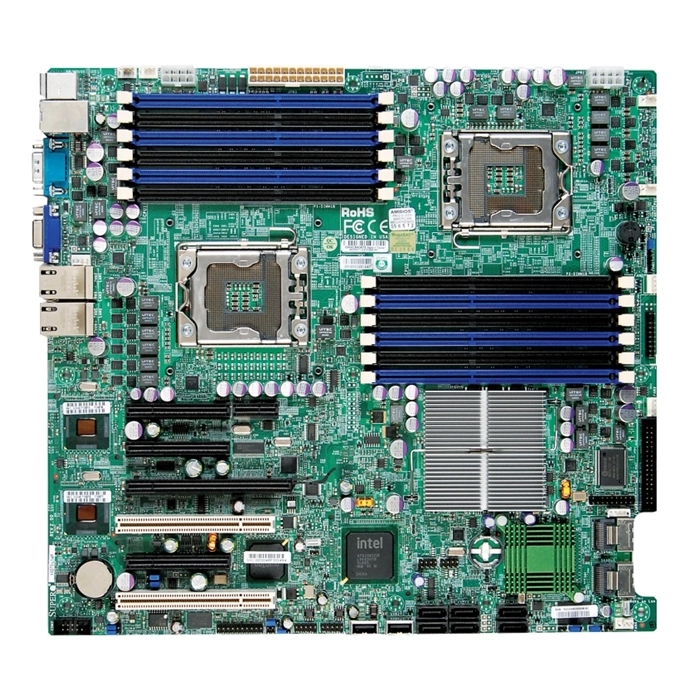

X8DT3-F - Supermicro Intel Xeon 5600/5500/5520 Chipset Extend-ATX System Board (Motherboard) Dual Socket LGA-1366

1. Form Factor: Extended ATX (12" x 13")
2. CPU Sockets: Dual Socket LGA-1366
3. Supported CPU Series: Intel Xeon 5600/5500/5520
4. Chipset: Intel 5520 (Tylersburg) chipset
5. Memory Slots: 12 x 240-pin DDR3 DIMM slots
6. Maximum Memory Supported: Up to 192GB DDR3 ECC Registered memory
7. Memory Speeds Supported: 1333/1066/800 MHz
8. Expansion Slots: 2 x PCI-E 2.0 x16, 2 x PCI-E 2.0 x8, 1 x PCI-E 2.0 x4 (in x8 slot), 1 x UIO slot
9. SATA Ports: 6 x SATA2 3Gb/s ports, 2 x SATA3 6Gb/s ports
10. RAID Support: RAID 0, 1, 5, 10 support (Windows), RAID 0, 1, 10 support (Linux)
11. LAN: Dual LAN with Intel 82573V and 82573L Gigabit Ethernet Controllers
12. USB Ports: 2 x USB 2.0 ports, 1 x USB 2.0 header

Notes:
1. This motherboard supports Intel Xeon processors with up to 6 cores and 12 threads, making it ideal for high-performance computing applications.
2. The 12 DDR3 DIMM slots allow for a large amount of memory to be installed, which is essential for memory-intensive applications such as virtualization.
3. The dual LAN ports provide redundancy and failover, ensuring that network connectivity is maintained even if one port fails.
