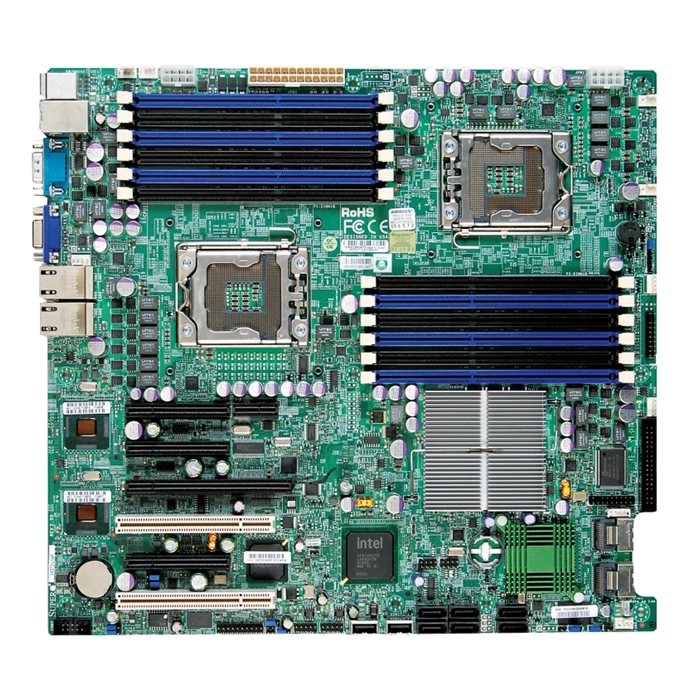

X8DT3-LN4F-B - Supermicro Dual LGA1366/ Intel 5520 / ICH10R + IOH-36D/ V/4GbE/ EATX Server Motherboard

1. Form Factor: Extended ATX (EATX)
2. CPU Socket Type: Dual LGA 1366
3. Chipset: Intel 5520 / ICH10R + IOH-36D
4. Memory Type: DDR3 ECC Registered DIMM
5. Maximum Memory Supported: 192GB
6. Expansion Slots: 2x PCI-E 2.0 x16, 2x PCI-E 2.0 x8, 1x PCI-E 2.0 x4 (in x8)
7. SATA Ports: 6x SATA2 3.0Gb/s, 2x SATA3 6.0Gb/s
8. LAN: 4x Gigabit Ethernet ports
9. USB Ports: 2x USB 2.0 ports (rear), 1x USB 2.0 header (internal)
10. Audio: 7.1 HD Audio
11. Power Connectors: 1x 24-pin ATX power connector, 2x 8-pin CPU power connectors
12. RAID Support: RAID 0, 1, 5, 10

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. The four Gigabit Ethernet ports allow for high-speed networking and server clustering.
3. The support for up to 192GB of memory makes this motherboard ideal for memory-intensive applications.
