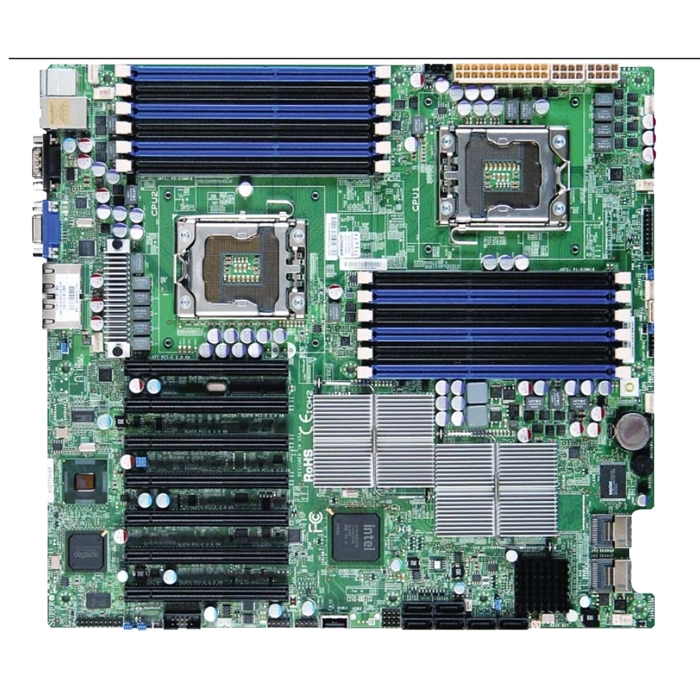

X8DTH-IF-B - Supermicro Dual LGA1366 Xeon/ Intel 5520/ DDR3/ V/2GbE/ EATX Server Motherboard

1. Form Factor: EATX (12" x 13")
2. CPU: Dual LGA1366 sockets support Intel Xeon 5500/5600 series processors
3. Chipset: Intel 5520 (Tylersburg) chipset
4. Memory: 12x 240-pin DDR3 DIMM slots, Supports up to 192GB DDR3 ECC Registered memory
5. Expansion Slots: 2x PCI-E 2.0 x16 slots, 2x PCI-E 2.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot
6. Storage: 6x SATA2 3.0Gbps ports, 2x SATA3 6.0Gbps ports, RAID 0, 1, 5, 10 support
7. LAN: Dual-port Intel 82576 Gigabit Ethernet Controller
8. USB: 2x USB 2.0 ports (2 rear), 1x USB 2.0 header (2 ports)
9. Audio: N/A
10. Video: Matrox G200eW Graphics
11. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
12. Power Connectors: 1x 24-pin ATX power connector, 1x 8-pin ATX 12V power connector

Notes:
1. This motherboard supports high-end Xeon processors, making it ideal for enterprise-level servers.
2. The IPMI 2.0 support allows for remote management and troubleshooting of the server.
3. The dual-port Gigabit Ethernet controller provides reliable and fast network connectivity.
