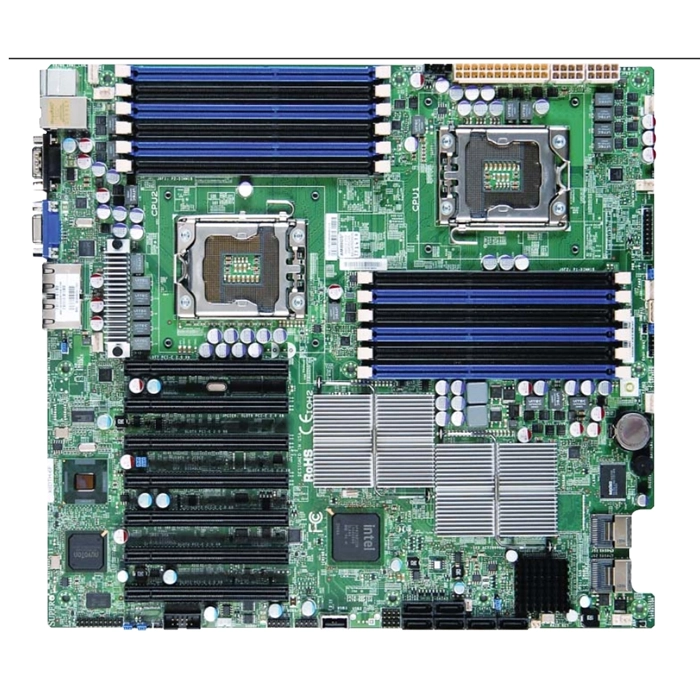

X8DTH-IF - Supermicro Dual LGA1366/ Intel 5520/ DDR3/ V/2GbE/ Extended ATX Server Motherboard

1. Form Factor: Extended ATX (12" x 13")
2. CPU Socket Type: Dual LGA 1366
3. Chipset: Intel 5520 (Tylersburg) chipset
4. Memory: 12x 240-pin DDR3 DIMM slots, Supports up to 192GB DDR3 ECC Registered memory (RDIMM) or 48GB DDR3 ECC/Non-ECC Unbuffered memory (UDIMM)
5. Expansion Slots: 2x PCI-E 2.0 x16 slots, 2x PCI-E 2.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot, 1x PCI-E 2.0 x4 slot (in x8)
6. SATA: 6x SATA2 (3Gb/s) ports, Supports RAID 0, 1, 5, 10
7. LAN: 2x RJ45 LAN ports (Intel 82573V Gigabit Ethernet Controller)
8. USB: 2x USB 2.0 ports, 1x USB 2.0 header
9. Audio: Realtek ALC883 7.1 HD Audio
10. Power Connectors: 1x 24-pin ATX power connector, 1x 8-pin ATX 12V power connector
11. BIOS: 16Mb SPI Flash EEPROM with AMI BIOS
12. Management: IPMI (Intelligent Platform Management Interface) 2.0 with dedicated LAN port

Notes:
1. This motherboard supports both ECC and non-ECC memory modules.
2. The IPMI feature allows for remote management and monitoring of the server.
3. The extended ATX form factor provides additional expansion slots and connectivity options.
