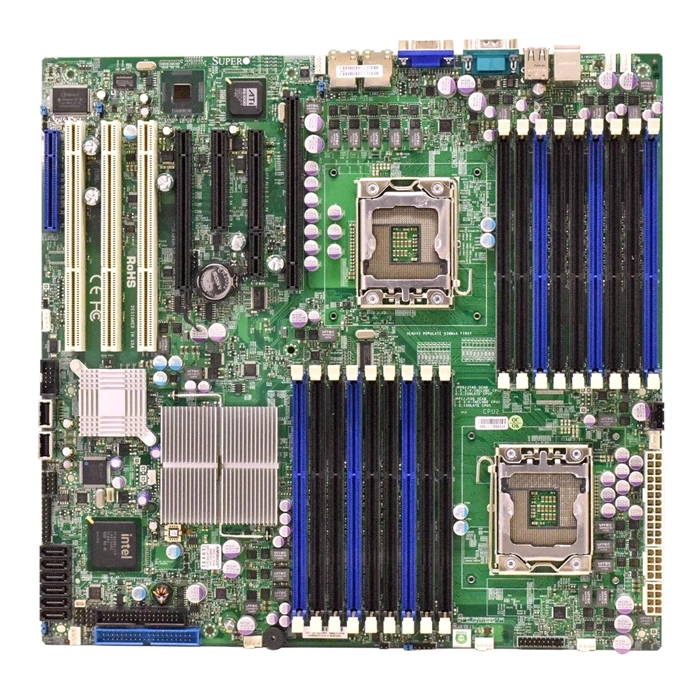

X8DTN+-B - Supermicro Dual LGA1366/ Intel 5520/ DDR3/ V/2GbE/ EATX Server Motherboard

1. Processor Support: Dual LGA1366 Intel Xeon Processors
2. Chipset: Intel 5520 (Tylersburg) chipset
3. Memory Support: 12x 240-pin DDR3 DIMM sockets, Supports up to 192GB DDR3 ECC Registered memory (RDIMM) or 48GB DDR3 ECC Un-Buffered memory (UDIMM)
4. Expansion Slots: 2x PCI-Express 2.0 x16 slots, 1x PCI-Express x8 slot, 1x PCI-Express x4 slot, 1x 32-bit PCI slot
5. On-board SATA: 6x SATA2 ports (3Gb/s)
6. LAN: 2x RJ45 LAN ports (Gigabit Ethernet)
7. USB: 2x USB 2.0 ports (rear), 2x USB 2.0 ports (header)
8. Audio: N/A
9. Form Factor: EATX (Extended ATX)
10. Power Connectors: 1x 24-pin ATX power connector, 2x 8-pin CPU power connectors
11. RAID Support: Supports RAID 0, 1, 5, 10
12. Integrated IPMI 2.0 with KVM and Dedicated LAN

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. The IPMI 2.0 feature allows for remote management and monitoring of the server.
3. This motherboard supports both registered and unbuffered DDR3 memory, but they cannot be mixed.
