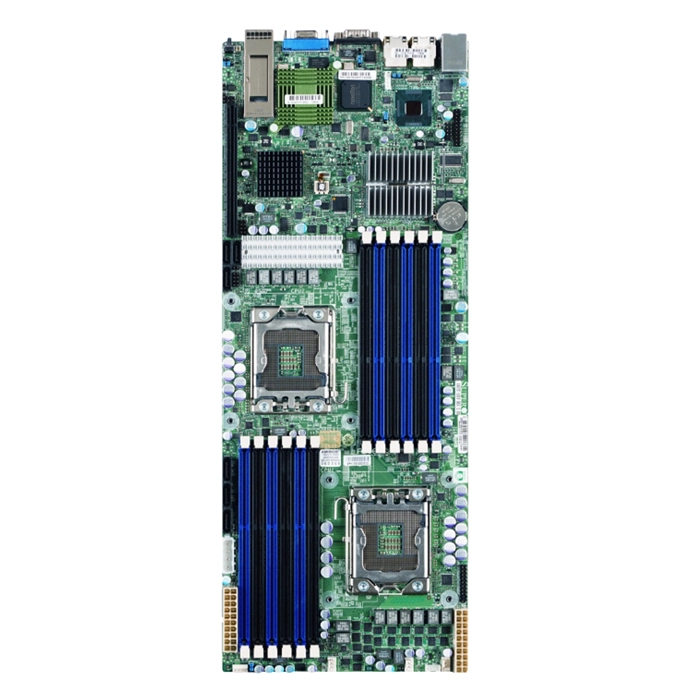

Supermicro X8DTT-IBX-B | Dual LGA1366/ Intel 5520 / ICH10R/ DDR3/ V/2GbE/ Proprietary Server Motherboard

1. Form Factor: Extended ATX
2. Processor: Dual LGA1366 Intel Xeon 5500/5600 Series Processors
3. Chipset: Intel 5520 (Tylersburg) & ICH10R
4. Memory: 12x 240-pin DDR3 DIMM slots, Supports up to 192GB DDR3 ECC Registered memory
5. Expansion Slots: 2x PCI-E 2.0 x16 slots, 1x PCI-E 2.0 x8 slot, 1x PCI-E 2.0 x4 (in x8) slot, 1x PCI-E 2.0 x4 (in x8) slot (w/ x8 bridge)
6. SATA: 6x SATA2 (3 Gbps) ports via ICH10R controller, 2x SATA3 (6 Gbps) ports via Marvell 9128 controller
7. LAN: Dual LAN with Intel 82576 Gigabit Ethernet Controller
8. USB: 2x USB 2.0 ports (rear), 2x USB 2.0 ports (via header)
9. Graphics: Matrox G200eW Graphics
10. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
11. Audio: 7.1 HD Audio with optical S/PDIF
12. Power Connectors: 1x 24-pin ATX power connector, 1x 8-pin ATX 12V power connector

Notes:
1. This motherboard supports both DDR3 ECC Registered and ECC Unbuffered memory, but they cannot be mixed.
2. The Marvell 9128 controller supports RAID 0 and 1 for the SATA3 ports.
3. The IPMI 2.0 feature allows remote management of the server, including power control and monitoring of hardware health.
