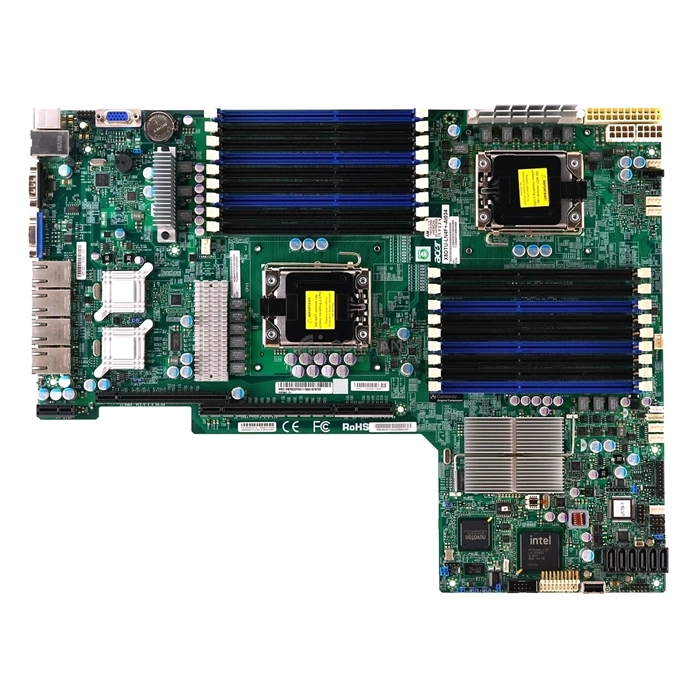

X8DTU-LN4F+-B - Supermicro Dual LGA1366 Xeon/ Intel 5520/ V/4GbE/ Proprietary Server Motherboard

1. Form Factor: ATX
2. Processor: Dual LGA1366 Xeon
3. Chipset: Intel 5520
4. Memory: 12x 240-pin DDR3 DIMM slots, up to 192GB ECC Registered memory
5. Expansion Slots: 2x PCI-E 2.0 x16 slots, 2x PCI-E 2.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot, 1x PCI-E 2.0 x4 (in x8) slot (with x4 bandwidth)
6. Storage: 6x SATA2 3.0 Gbps ports, 2x SATA2 3.0 Gbps ports via SCU, 8x SAS2 6.0 Gbps ports via LSI 2008 controller
7. LAN: Quad LAN with Intel 82576 controllers, 1x Realtek RTL8201N PHY (dedicated IPMI)
8. USB: 2x USB 2.0 ports (rear), 2x USB 2.0 ports (header)
9. Serial Port: 1x Fast UART 16550 serial port (rear), 1x serial port header
10. IPMI: Support for Intelligent Platform Management Interface v.2.0
11. Power Configurations: ACPI power management, ATX Power connector, +12V, +5V, +3.3V, 8-pin CPU power connector
12. BIOS: 32Mb SPI Flash EEPROM with AMI BIOS

Notes:
1. This motherboard supports up to two Intel Xeon processors, making it ideal for high-performance server applications.
2. With support for up to 192GB of ECC Registered memory, this motherboard is capable of handling large amounts of data.
3. The quad LAN configuration with Intel 82576 controllers provides reliable and fast network connectivity.
