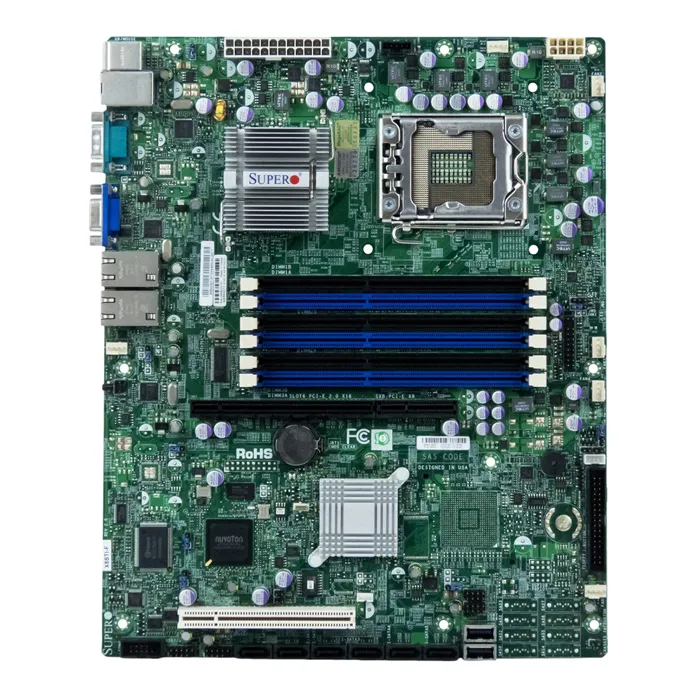

X8STI-O - Supermicro LGA1366/ Intel X58/ DDR3-1333/ V/2GbE/ ATX Server Motherboard

1. Form Factor: ATX
2. Processor Socket: LGA1366
3. Chipset Type: Intel X58
4. Memory Type: DDR3-1333/1066/800 MHz ECC or non-ECC SDRAM
5. Memory Capacity: Up to 24GB DDR3 ECC Registered Memory
6. Expansion Slots: 2 x PCI-E 2.0 x16, 1 x PCI-E 2.0 x8, 1 x PCI-E 2.0 x4 (in x8)
7. Storage: 6 x SATA2 3.0 Gbps Ports, 2 x SATA3 6.0 Gbps Ports
8. LAN: Dual Gigabit Ethernet LAN ports
9. USB Ports: 2 x USB 2.0 Ports, 1 x USB 2.0 Header
10. Audio: 7.1 HD Audio
11. Power Connectors: 24-pin main power connector, 8-pin CPU power connector
12. BIOS: 16Mb SPI Flash EEPROM with AMI BIOS

Helpful Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. The LGA1366 socket is compatible with Intel Xeon processors, which are designed for high-performance computing.
3. The dual Gigabit Ethernet LAN ports allow for high-speed network connectivity and redundancy.
