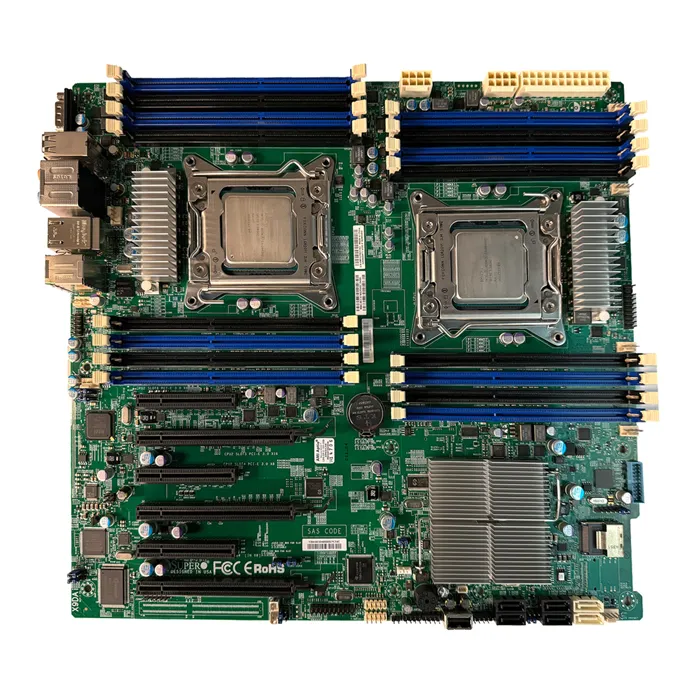

X9DAI-O - Supermicro LGA2011/ Intel C602/ DDR3/ SATA3/USB3.0/ A/2GbE/ EATX Server Motherboard

1. Form Factor: EATX
2. Socket Type: Dual LGA 2011
3. Chipset: Intel C602
4. Memory: 16x 240-pin DDR3 DIMM slots, up to 512GB ECC Registered Memory
5. Expansion Slots: 6x PCI-E 3.0 x8 slots, 2x PCI-E 3.0 x16 slots
6. Storage: 10x SATA3 ports, 2x SATA2 ports, 8x SAS2 ports (from LSI 2308)
7. USB Ports: 2x USB 3.0 ports, 8x USB 2.0 ports
8. Network: Dual Gigabit Ethernet LAN ports (Intel i350)
9. Audio: Realtek ALC889 7.1 HD Audio
10. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
11. Power Connectors: 2x 8-pin ATX 12V power connectors, 1x 24-pin ATX power connector
12. BIOS: 128Mb SPI Flash EEPROM with AMI BIOS

Helpful Notes:
1. This motherboard is designed for use in server systems and may not be compatible with standard PC cases.
2. The large number of memory slots and expansion slots make this motherboard ideal for high-performance computing applications.
3. The IPMI 2.0 management feature allows for remote management and monitoring of the server system.
