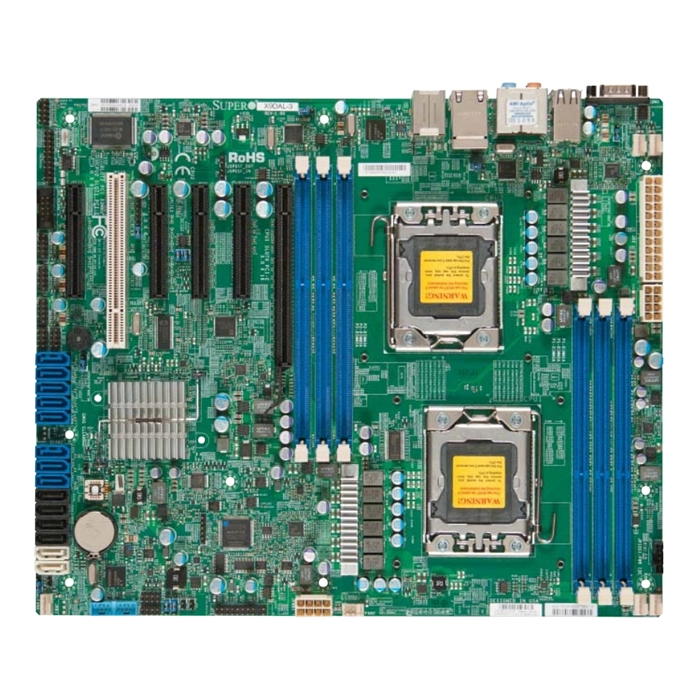

X9DAL-3-O - Supermicro LGA1356/ Intel C606/ DDR3/ SATA3/USB3.0/ A/2GbE Server Motherboard

1. Form Factor: ATX
2. CPU Socket Type: LGA1356
3. Chipset: Intel C606
4. Memory Type: DDR3 ECC Registered/Unbuffered
5. Number of Memory Slots: 8
6. Maximum Memory Supported: 256GB
7. Expansion Slots: 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8), 1x PCI-E 2.0 x2 (in x8), 1x PCI 32-bit
8. SATA 3.0 Ports: 8
9. RAID Support: 0, 1, 5, 10
10. USB 3.0 Ports: 4 (2 rear, 2 via header)
11. Network Interfaces: 2x Gigabit Ethernet
12. Audio: Realtek ALC889 7.1-Channel High Definition Audio

Notes:
1. This motherboard supports Intel Xeon E5-2400 and E5-2400 v2 processors.
2. The motherboard has a dedicated IPMI 2.0 remote management interface.
3. The Supermicro X9DAL-3-O is compatible with Windows Server 2012 and 2016.
