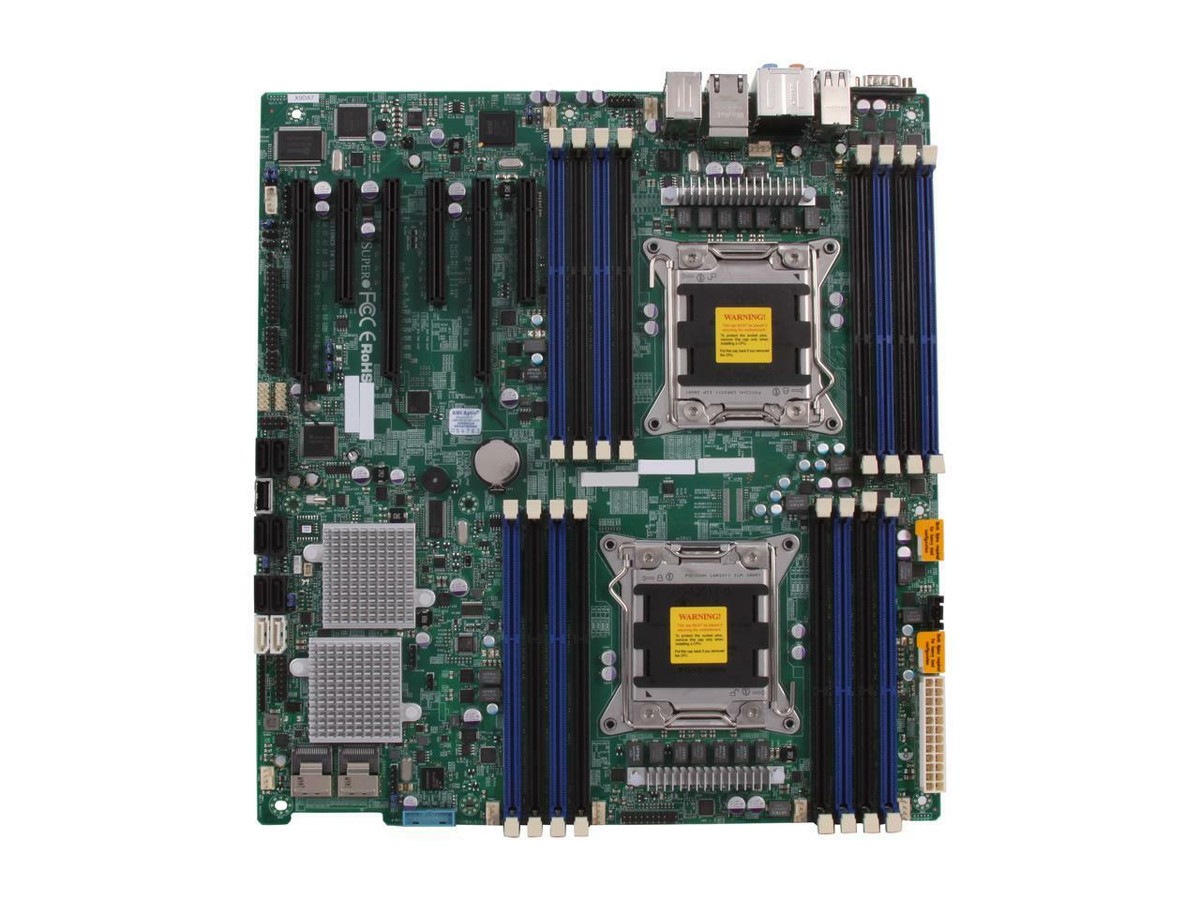

Supermicro X9DAX-7F-B | Dual LGA2011/ Intel C602/ DDR3/ SATA3/SAS2/USB3.0/ A/V/2GbE/ Enhanced EATX Server Motherboard

1. Form Factor: Enhanced Extended ATX (E-ATX)
2. Processor Support: Dual LGA2011 Intel Xeon E5-2600 v2 Processors
3. Chipset: Intel C602
4. Memory Support: 16x 240-pin DDR3 DIMM slots, up to 1TB ECC/REG Memory
5. Expansion Slots: 7x PCIe 3.0 x16 slots, 2x PCIe 3.0 x8 slots, 1x PCIe 2.0 x4 slot
6. Storage: 10x SATA3 (6Gbps) ports, 8x SAS2 (6Gbps) ports, RAID 0, 1, 5, 10 support
7. USB: 4x USB 3.0 ports (2 rear, 2 via header), 8x USB 2.0 ports (2 rear, 6 via headers)
8. Networking: 2x Gigabit Ethernet ports (Intel i350), 1x Dedicated IPMI port
9. Audio: 7.1 HD Audio with optical S/PDIF
10. Power Connectors: 1x 24-pin ATX power connector, 2x 8-pin CPU power connectors
11. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
12. Operating System Support: Windows Server 2012 R2, Windows Server 2012, RedHat Enterprise Linux, SuSE Linux Enterprise Server

Notes:
1. The X9DAX-7F-B supports up to 10 SATA3 and 8 SAS2 drives, making it ideal for high-capacity storage applications.
2. With 16 DIMM slots, this motherboard can support up to 1TB of ECC/REG memory, making it ideal for memory-intensive applications.
3. The X9DAX-7F-B features IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, allowing for remote management and troubleshooting.
