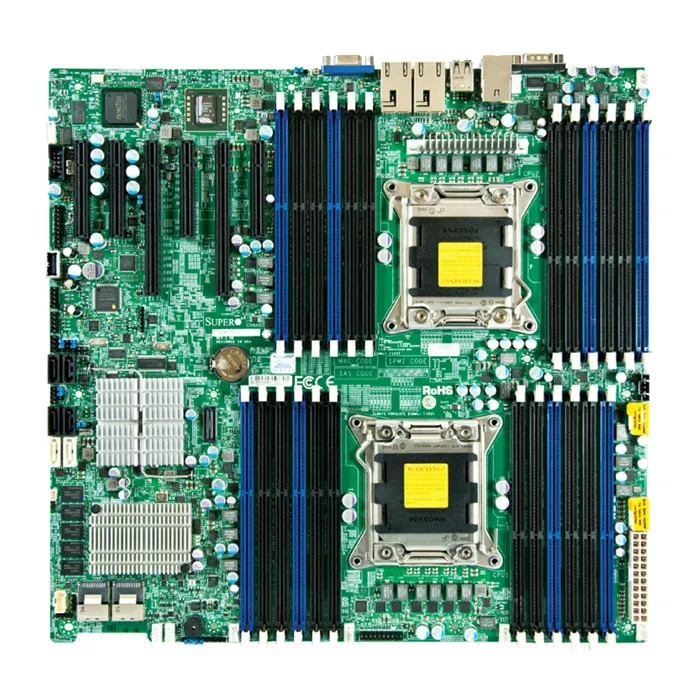

X9DR7-TF+-B - Supermicro Dual LGA2011/ Intel C602J/ DDR3/ SATA3/SAS2/ V/2GbE/ EEATX Server Motherboard

1. Form Factor: Extended ATX (EEATX)
2. CPU Socket Type: Dual LGA 2011
3. Chipset: Intel C602J
4. Memory Type: DDR3 ECC Registered/Unbuffered
5. Maximum Memory Supported: 1TB
6. Memory Slots: 16x 240pin DIMM
7. Expansion Slots: 3x PCIe 3.0 x16, 3x PCIe 3.0 x8, 1x PCIe 2.0 x4 (in x8)
8. SATA 3.0 Ports: 10
9. SAS 2.0 Ports: 8
10. LAN: 2x 10GBase-T (Intel X540), 1x dedicated IPMI LAN port
11. USB Ports: 4x USB 3.0, 4x USB 2.0
12. Power Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors

Notes:
1. This motherboard is designed for high-performance server applications.
2. The dual LAN ports provide redundancy and high-speed connectivity.
3. The large number of memory slots and expansion slots make this motherboard highly versatile.
